Brand: Celestion

Product Code: CG12H1275-T5890-8ohm

Availability:Out of stock

$259.00 259.00

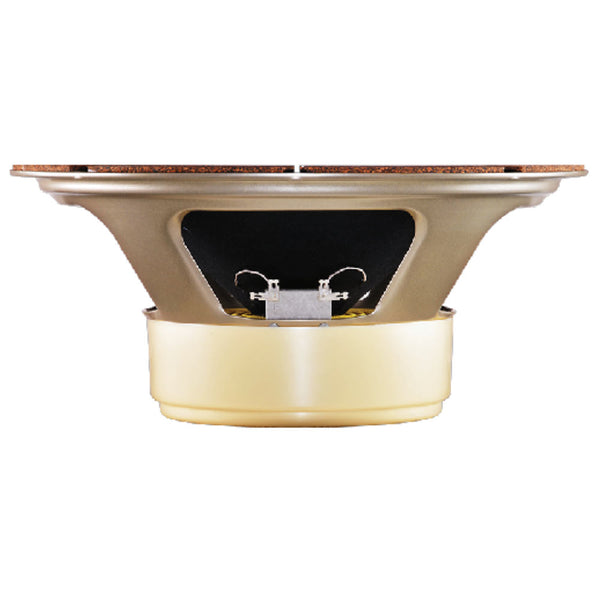

Back in the late 60s, the G12H was created by fixing an 'H' type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an 'H' magnet to the G12M-65 Creamback, to create a guitar speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has unmistakeable G12H tone, with a tighter low end than the G12M-65 Creamback and a punchier, more dynamic high end. The H magnet brings additional focus, body and girth to the Creamback tone. It thickens single notes, resulting in a highly articulate, vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4x12 cab!

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

General Specifications

Nominal diameter                  12", 305mm
Power rating                           75W
Nominal impedance               Available 8Ω or 16Ω
Sensitivity                               100dB
Chassis type                           Pressed steel
Voice coil diameter                 1.75", 44.5mm
Magnet type                           Ceramic
Magnet weight                        50oz, 1.42kg
Frequency range                     70-5000Hz
Resonance frequency, Fs       75Hz
DC resistance, Re                   6.37Ω and 12.5Ω
Voice coil former material        Round copper

Mounting Information

Cut-out diameter                       11.1", 283mm
Diameter                                    12.2", 309mm
Magnet structure diameter         6.6", 168mm
Mounting slot dimensions          0.31", 7.9mm Ø
Mounting slot PCD                     11.7", 297mm
Number of mounting slots          8
Overall depth                              5.4", 138mm
Unit weight                                 10.4lb, 4.7kg


8Ω Frequency Response

Product Graph
