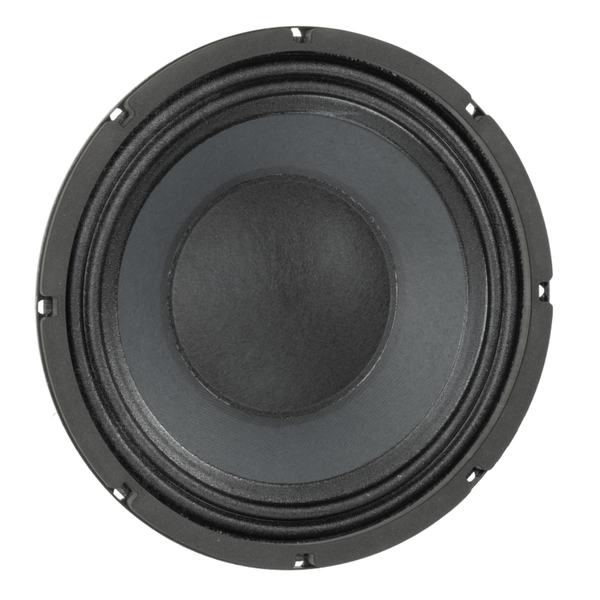

Eminence BASSLITE SC10-32 10" 100 Watts 32 ohm Bass Guitar Speaker
Ask about this productEminence BASSLITE SC10-32 10" 100 Watts
32 ohm Bass Guitar Speaker
Optimized specifically for sealed bass cabinets, the ultra-lightweight Basslite SC10 will take the weight out, but leave the performance in. Featuring a 4 oz. neodymium magnet and 2 inch voice coil, this 10 inch speaker is available in 16 and 32 ohms for your 4x10 or 8x10 rig.
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 32 Ω |
| Power Rating* | |
| Program Power | 200 W |
| Watts | 100 W |
| Resonance | 47 Hz |
| Usable Frequency Range | 50 Hz - 4.5 kHz |
| Sensitivity* | 94.2 dB |
| Magnet Weight | 4 oz. |
| Gap Height | 0.28", 7.1 mm |
| Voice Coil Diameter | 2", 51 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 47 Hz |
| DC Resistance (Re) | 25.1 Ω |
| Coil Inductance (Le) | 1.46m H |
| Mechanical Q (Qms) | 7.1 |
| Electromagnetic Q (Qes) | 0.59 |
| Total Q (Qts) | 0.55 |
| Compliance Equivalent Volume (Vas) | 79.97 liters / 2.82 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 154 cc |
| Mechanical Compliance of Suspension (Cms) | 0.47 mm/N |
| BL Product (BL) | 17.32 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 24 grams |
| Efficiency Bandwidth Product (EBP) | 80 |
| Maximum Linear Excursion (Xmax) | 4.4 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 9 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.03 cu.ft. / 0.84 liters |
| Overall Diameter | 10.08", 256 mm |
| Baffle Hole Diameter | 9.18", 233.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 4.25", 108 mm |
| Net Weight | 3.5 lbs, 1.59 kg |
| Shipping Weight | 4.6 lbs, 2.09 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Curved paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition felt dust cap |
