Eminence DOUBLE-T 12 12" 300 Watts Guitar Speaker - The Speaker Factory
products/Double_T_12--3.png
products/Double_T_12--2.png

Brand: Eminence

Product Code: DOUBLE-T12

Availability:Out of stock

$659.99 659.99

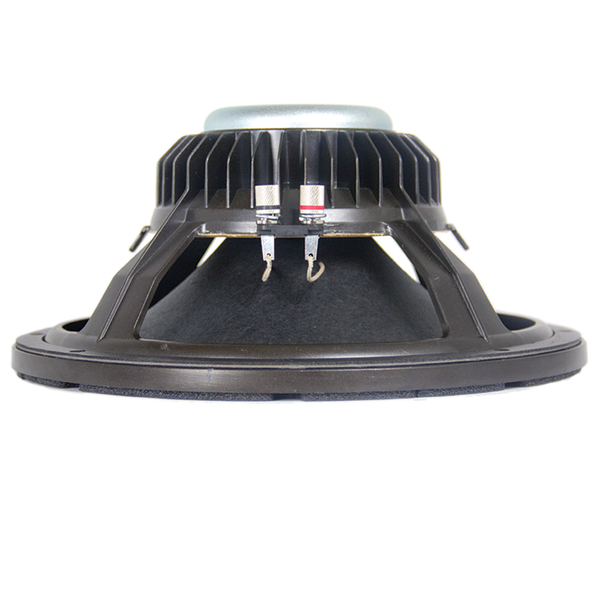

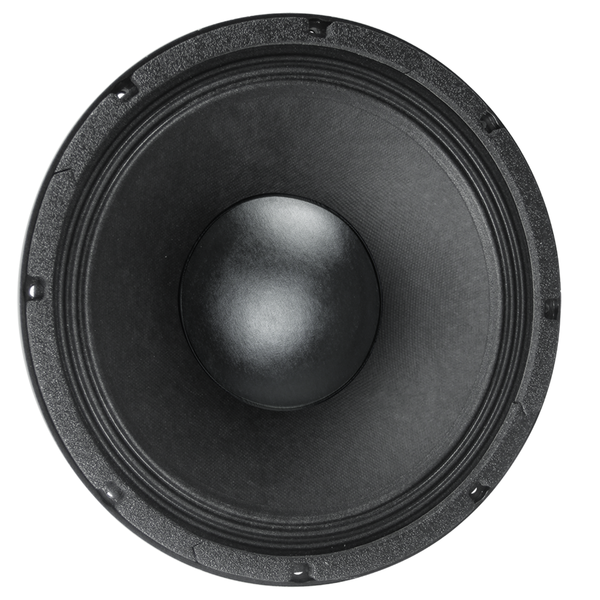

Eminence DOUBLE-T 12 12" 300 Watts Guitar Speaker 8 ohm

Rated at 300 watts, the Travis Toy Signature Double-T 12 pedal steel guitar speaker features a tight low end, a midrange bite that can cut through a mix, and detailed high end without being too bright. Travis worked closely with the engineers at Eminence to achieve these characteristics and even managed to pack them all into a 12 inch speaker that weighs just over 7 lbs ? less than half the weight of the speakers he replaced.

SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 300 W
Resonance 53 Hz
Usable Frequency Range 50 Hz - 3.8 kHz
Sensitivity* 100.2 dB
Magnet Weight 11 oz.
Gap Height 0.36", 9.1 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 53 Hz
DC Resistance (Re) 5.6 Ω
Coil Inductance (Le) 0.57m H
Mechanical Q (Qms) 19.59
Electromagnetic Q (Qes) 0.3
Total Q (Qts) 0.3
Compliance Equivalent Volume (Vas) 63.69 liters / 2.25 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 122.1 cc
Mechanical Compliance of Suspension (Cms) 0.17 mm/N
BL Product (BL) 18.23 T-M
Diaphragm Mass Inc. Airload (MMs) 54 grams
Efficiency Bandwidth Product (EBP) 177
Maximum Linear Excursion (Xmax) 2.35 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.09 cu.ft. / 2.54 liters
Overall Diameter 12.38", 314.5 mm
Baffle Hole Diameter 11.04", 280.4 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 11.62", 295.2mm
Depth 5.63", 143 mm
Net Weight 7.1 lbs, 3.22 kg
Shipping Weight 8.7 lbs, 3.95 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Vented core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth edge
Dust Cap Composition Paper dust cap
