Brand: Eminence

Product Code: LEGEND-CA1059-8ohm

Availability:Out of stock

$425.00 425.00

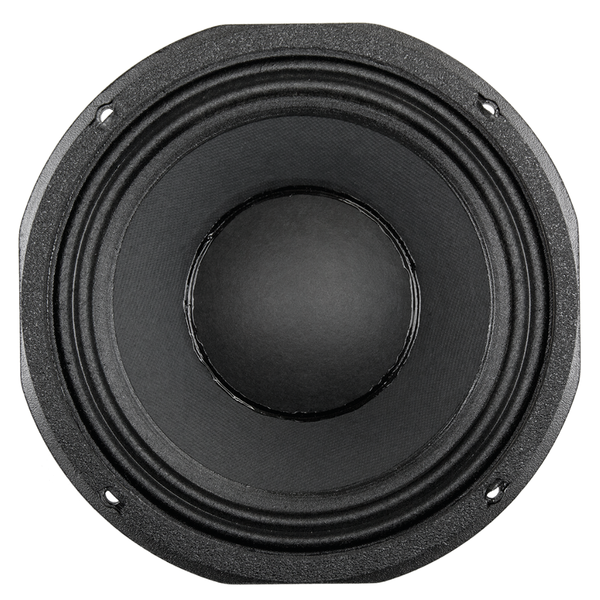

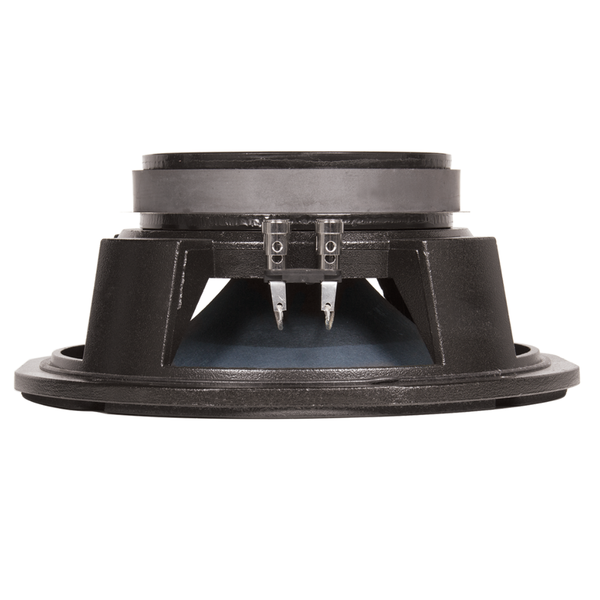

Eminence LEGEND CA1059 10" Bass Speaker 250 Watts 8 Ohm

A larger magnet version of the popular Legend CA10, the Legend CA1059 is a 10 inch cast-frame bass guitar speaker with a proven track record as THE speaker for punch and clarity in many famous OEM cabinets throughout the decades. Like the CA10, the CA1059?s chassis is truncated on the sides for tight fitting in 2x, 4x, and 8x10 configurations. Along with higher Xmax, the CA1059 also features a larger 59 oz. ferrite magnet, producing higher efficiency, and lower Qts for dampening than its smaller magnet version.

SPECIFICATION
Nominal Basket Diameter 10", 0 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 500 W
Watts 250 W
Resonance 48 Hz
Usable Frequency Range 50 Hz - 3.2 kHz
Sensitivity* 98.7 dB
Magnet Weight 59 oz.
Gap Height 0.313", 8 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 48 Hz
DC Resistance (Re) 5.53 Ω
Coil Inductance (Le) 0.11m H
Mechanical Q (Qms) 3.27
Electromagnetic Q (Qes) 0.28
Total Q (Qts) 0.26
Compliance Equivalent Volume (Vas) 71.47 liters / 2.52 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 165.3 cc
Mechanical Compliance of Suspension (Cms) 0.42 mm/N
BL Product (BL) 12.54 T-M
Diaphragm Mass Inc. Airload (MMs) 27 grams
Efficiency Bandwidth Product (EBP) 169
Maximum Linear Excursion (Xmax) 4.72 mm
Surface Area of Cone (Sd) 350.1 cm2
Maximum Mechanical Limit (Xlim) 8 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented N/a
Driver Volume Displaced 0.061 cu.ft. / 1.72 liters
Overall Diameter 10.5", 266.7 mm
Baffle Hole Diameter 9.01", 228.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.32", 8.1mm
Mounting Holes B.C.D. 9.71", 246.5mm
Depth 4.53", 115.1 mm
Net Weight 11.2 lbs, 5.08 kg
Shipping Weight 12.7 lbs, 5.76 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Edge wound Aluminum Voice Coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Die-cast aluminium basket
Cone Composition Cloth cone edge
Cone Edge Composition Cloth cone edge
Dust Cap Composition Paper dust cap
