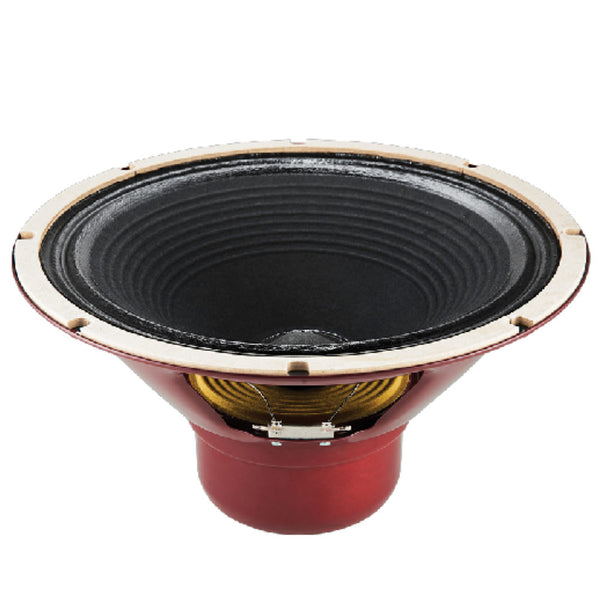

Celestion Ruby 12
Celestion Ruby 12" 35 Watt Alnico Guitar Speaker - The Speaker Factory
products/Celestion_Ruby_12_35watt_side.jpg

Brand: Celestion

Product Code: T6385-ruby-16ohm

Availability:In stock

$539.00 539.00

Available Options

Qty

Ask about this productAsk about this product
Add to Compare

The Celestion Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling, it’s ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious, dampened attack; the Ruby oozes a richly musical vintage warmth, with mellow highs and a smooth, sophisticated midrange.

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

8Ω Frequency Response

Product Graph

General Specifications

Nominal diameter                        12", 305mm
Power rating                                   35W
Nominal impedance                      8Ω & 16Ω
Sensitivity                                        100dB
Chassis type                                   Pressed steel
Voice coil diameter                        1.75", 44.5mm
Voice coil material                          Round copper
Magnet type                                    Alnico
Frequency range                             75-5000Hz
Resonance frequency, Fs              Fs: 75Hz
DC resistance, Re                            6.7Ω & 13.1Ω

Mounting Information

Cut-out diameter                              11.1”, 283mm
Diameter                                            12.2", 309mm
Magnet structure diameter               5.0", 128mm
Mounting slot dimensions                0.31", 7.9mm Ø
Mounting slot PCD                            11.7", 297mm
Number of mounting slots                8
Overall depth                                      6.5”, 165mm
Unit weight                                          9.3lb, 4.2kg
