Brand: Celestion

Product Code: t5801

Availability:In stock

$89.00 89.00

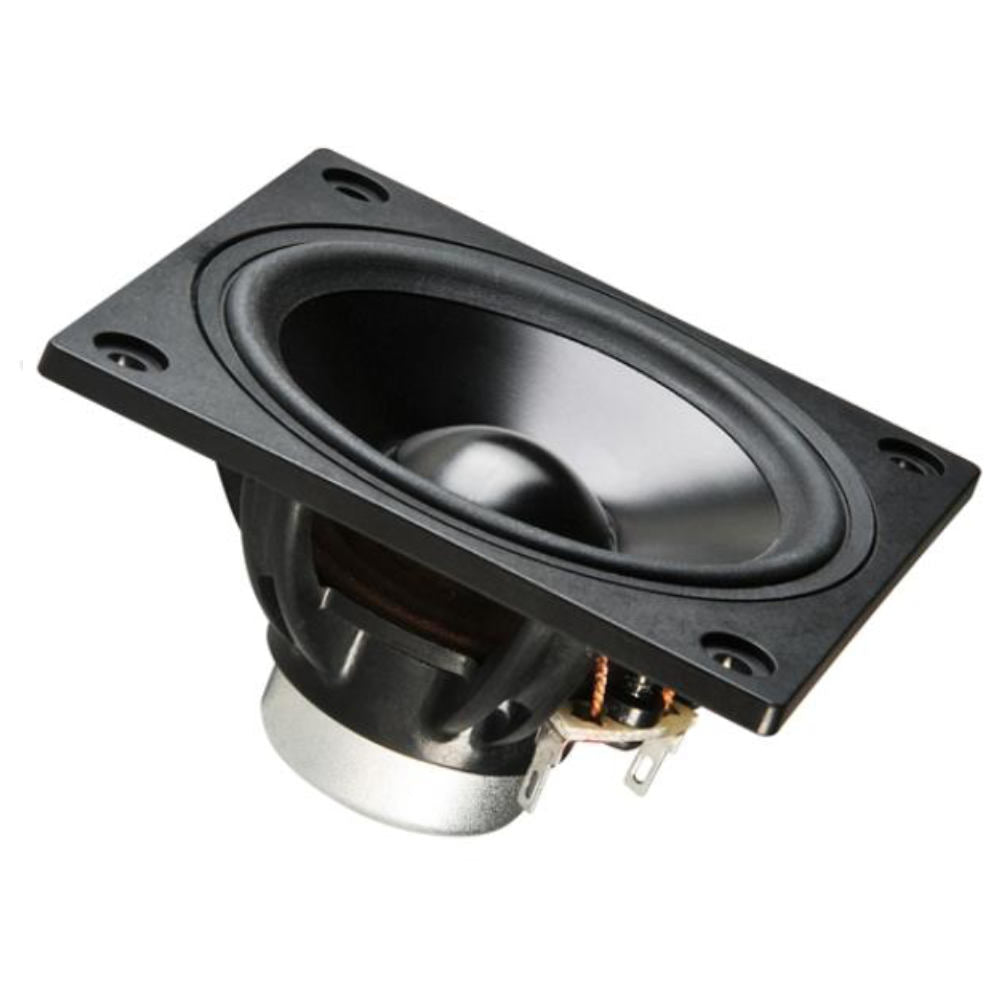

Compact and lightweight, full-range neodymium loudspeakers Advanced Finite Element Analysis techniques used for acoustic, mechanical

Features Include

  • Compact and lightweight, full-range neodymium loudspeakers
  • Advanced Finite Element Analysis techniques used for acoustic, mechanical and electromagnetic modelling
  • Ideal for applications such as portable line arrays where actively controlled wavefront (beam steering) is used
  • Delivers wider dispersion to higher frequencies than many equivalent compact, full-range drivers on the market
  • Chassis purpose-designed for maximum free air movement, with square mounting frame to facilitate close coupling of multiple units
  • Stiff and light aluminium cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
  • Half roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion
  • Designed to be weather resistant for outdoor applications

General Specifications

Nominal diameter                   88mm/3.5in
Power rating1                              35Wrms
Nominal impedance               8Ω
Sensitivity2                                    87dB
Frequency range                     98Hz-18.5kHz
Voice coil diameter                  25mm/1.0in
Chassis type                            Glass reinforced ABS
Magnet type                            Neodymium
Voice coil material                    Round Copper
Former material                        Polyimide
Cone material                           Aluminium
Surround material                     Elastomer
Xmax3                                              1.25mm/0.04in
Gap depth                                4mm/0.14in
Voice coil winding width           6.5mm/0.23in

Small Signal Parameters

Sd                     38.48cm 2/5.98in2
D                       70mm / 2.76in
Fs                      98Hz
Mms                   3.37g/0.12oz
Qms                   6.59
Qes                    0.66
Qts                     0.67
Re                      5.73Ω
Vas                     1.3lt/0.046ft3
BI                        4.5Tm
Cms                    0.62mm/N

Mounting Information

Overall depth                                          50mm/2in
Overall size                                             89.3 x 89.3mm/3.52in x 3.52in
Cut-out diameter                                    78.8mm/3.1in
Fitting                                                      4 x M4 holes
Mounting PCD range                              104mm/4.1in
Unit weight                                              160g/5.65oz

Product Graph
