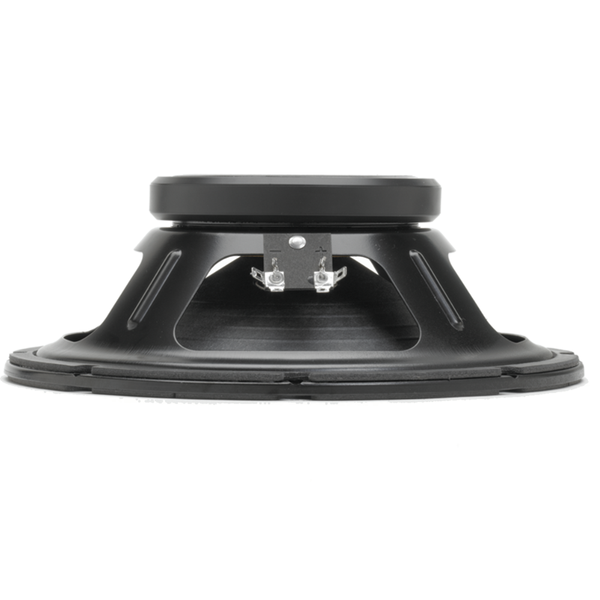

products/Legend_10516--3.png

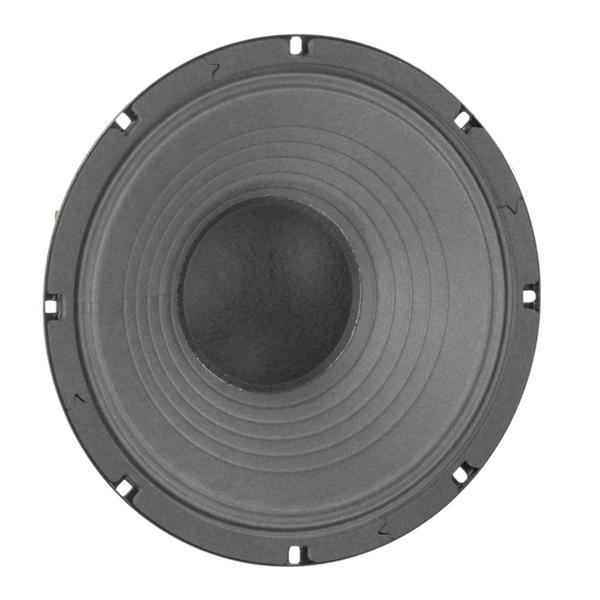

products/Legend_10516--2.png

Brand: Eminence

Product Code: LEGEND10516

Availability:In stock

$269.99 269.99

Eminence LEGEND 10516 10" Guitar Speaker 75 Watts 16 Ohm

The Eminence Legend 1058 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.

SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power N/A
Watts 75 W
Resonance 96 Hz
Usable Frequency Range 100 Hz - 5 kHz
Sensitivity* 99.9 dB
Magnet Weight 16 oz.
Gap Height 0.25", 6.4 mm
Voice Coil Diameter 1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 96 Hz
DC Resistance (Re) 10.2 Ω
Coil Inductance (Le) 0.64m H
Mechanical Q (Qms) 13.8
Electromagnetic Q (Qes) 1.32
Total Q (Qts) 1.21
Compliance Equivalent Volume (Vas) 21.8 liters / 0.77 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 0 cc
Mechanical Compliance of Suspension (Cms) 0.13 mm/N
BL Product (BL) 9.9 T-M
Diaphragm Mass Inc. Airload (MMs) 22 grams
Efficiency Bandwidth Product (EBP) 73
Maximum Linear Excursion (Xmax) 0 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.033 cu.ft. / 0.93 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.23", 5.8mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 4.1", 104.1 mm
Net Weight 4.4 lbs, 2 kg
Shipping Weight 5.4 lbs, 2.45 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap
