Brand: Eminence

Product Code: LEGENDCA10-16

Availability:Out of stock

$275.00 275.00

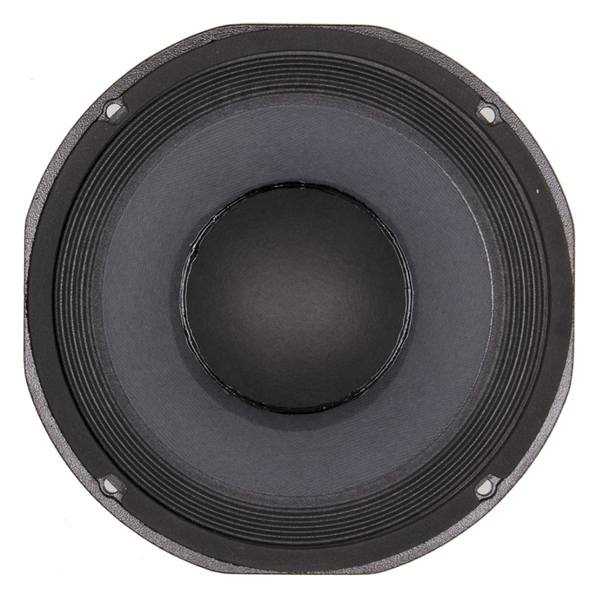

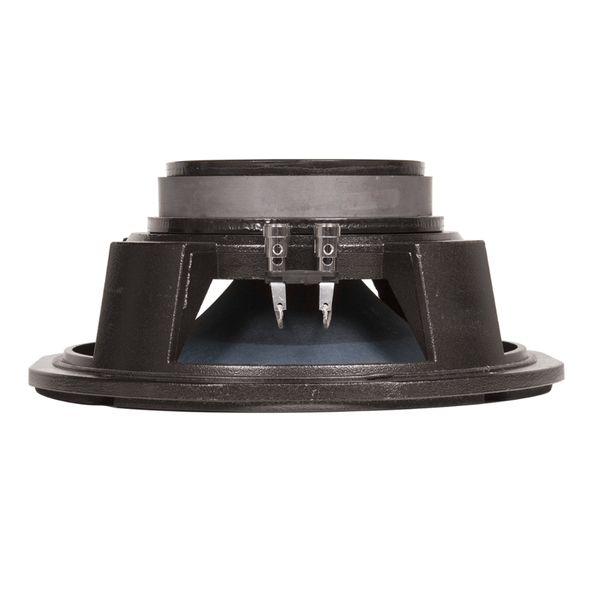

Eminence LEGEND CA10-16 10" Bass Guitar Speaker 200 Watt 16 Ohm

Made famous as an OEM model in many popular bass guitar cabinet brands, this highly sought after design features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet. Loud and clear bass guitar tone with legendary growl.

SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power 400 W
Watts 200 W
Resonance 53 Hz
Usable Frequency Range 53 Hz - 3.1 kHz
Sensitivity* 96.4 dB
Magnet Weight 38 oz.
Gap Height 0.312", 7.9 mm
Voice Coil Diameter 2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 53 Hz
DC Resistance (Re) 10.73 Ω
Coil Inductance (Le) 1.19m H
Mechanical Q (Qms) 6.47
Electromagnetic Q (Qes) 0.45
Total Q (Qts) 0.42
Compliance Equivalent Volume (Vas) 51.05 liters / 1.8 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 105.7 cc
Mechanical Compliance of Suspension (Cms) 0.3 mm/N
BL Product (BL) 15.31 T-M
Diaphragm Mass Inc. Airload (MMs) 29 grams
Efficiency Bandwidth Product (EBP) 119
Maximum Linear Excursion (Xmax) 3.02 mm
Surface Area of Cone (Sd) 350.1 cm2
Maximum Mechanical Limit (Xlim) 7 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented Acceptable
Driver Volume Displaced 0.043 cu.ft. / 1.22 liters
Overall Diameter 10.5", 266.7 mm
Baffle Hole Diameter 9.01", 228.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0", 0mm
Mounting Holes B.C.D. 0", 0mm
Depth 0", 0 mm
Net Weight 8.8 lbs, 3.99 kg
Shipping Weight 9.7 lbs, 4.4 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Kapton former
Magnet Composition Ferrite magnet
Core Details Vented and extended core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Treated paper dust cap
