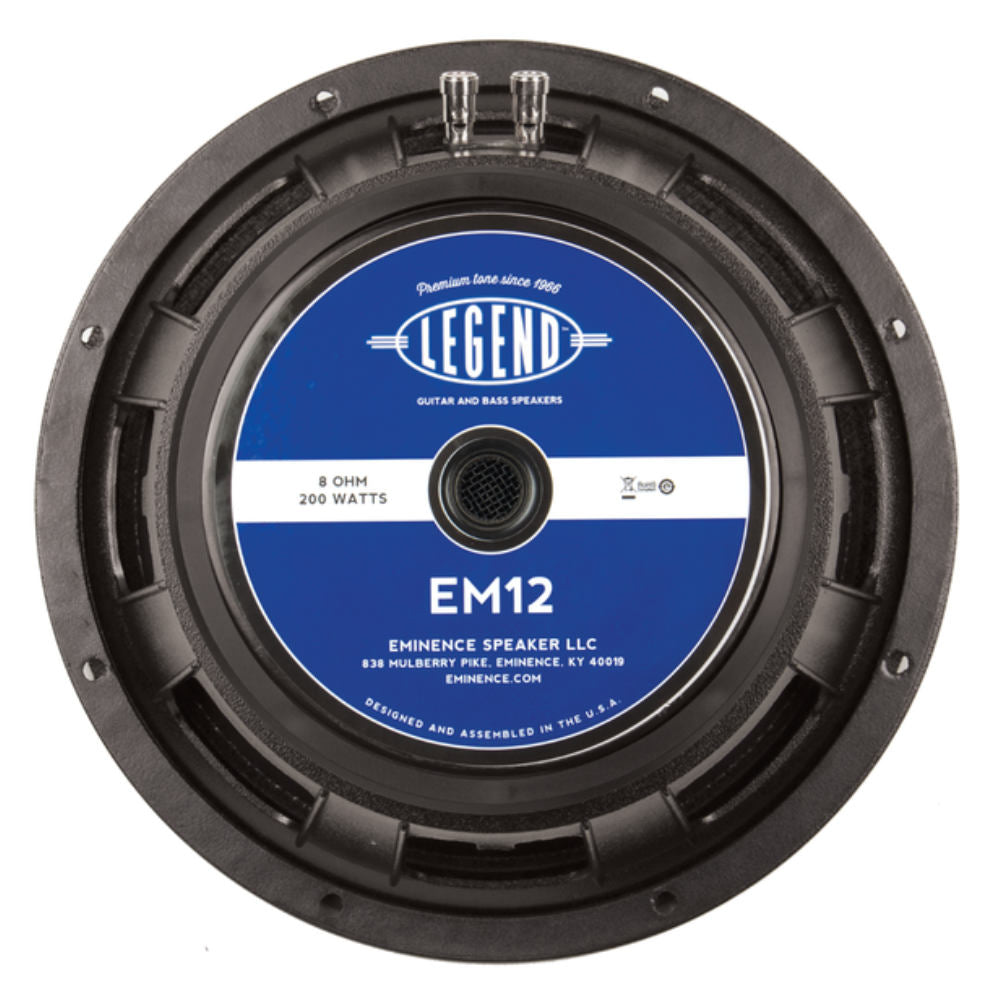

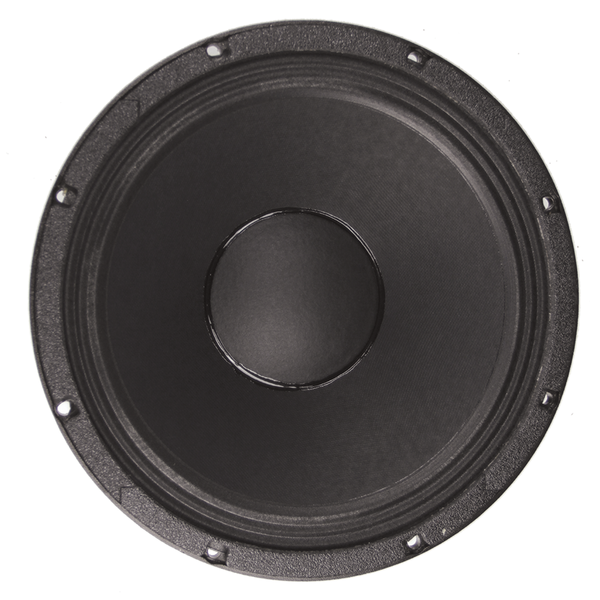

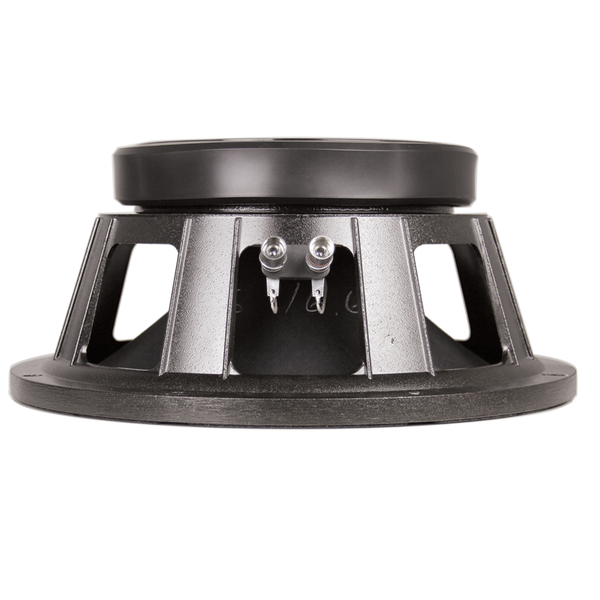

Eminence Legend EM12 12" Guitar Speaker 200 Watts 8 Ohms
Eminence Legend EM12 12" Guitar Speaker 200 Watts 8 Ohms
A high power 12 inch guitar speaker featuring ultra-clean tone with big, round, punchy lows and warm, smooth mids and highs. A more neutral tone so you can hear more of your amp and guitar.
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 200 W |
Resonance | 49 Hz |
Usable Frequency Range | 60 Hz - 4.9 kHz |
Sensitivity* | 101.1 dB |
Magnet Weight | 80 oz. |
Gap Height | 0.375", 9.5 mm |
Voice Coil Diameter | 2.5", 64 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 49 Hz |
DC Resistance (Re) | 6.6 Ω |
Coil Inductance (Le) | 0.49m H |
Mechanical Q (Qms) | 7.39 |
Electromagnetic Q (Qes) | 0.29 |
Total Q (Qts) | 0.28 |
Compliance Equivalent Volume (Vas) | 102.31 liters / 3.61 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 68 cc |
Mechanical Compliance of Suspension (Cms) | 0.26 mm/N |
BL Product (BL) | 16.9 T-M |
Diaphragm Mass Inc. Airload (MMs) | 40 grams |
Efficiency Bandwidth Product (EBP) | 170 |
Maximum Linear Excursion (Xmax) | 1.27 mm |
Surface Area of Cone (Sd) | 532.4 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.09 cu.ft. / 2.55 liters |
Overall Diameter | 12.38", 314.5 mm |
Baffle Hole Diameter | 11.07", 281.2 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.26", 6.6mm |
Mounting Holes B.C.D. | 11.57", 293.9mm |
Depth | 5.38", 136.5 mm |
Net Weight | 16.3 lbs, 7.39 kg |
Shipping Weight | 18 lbs, 8.16 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Edge wound aluminum voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Vented core |
Basket Materials | Die cast aluminum basket |
Cone Composition | Paper cone |
Cone Edge Composition | Cloth edge |
Dust Cap Composition | Paper dust cap |
