Eminence MAVERICK 12" Speaker 75 Watts 8 Ohm FDM Series
Eminence MAVERICK 12" Speaker 75 Watts 8 Ohm FDM Series

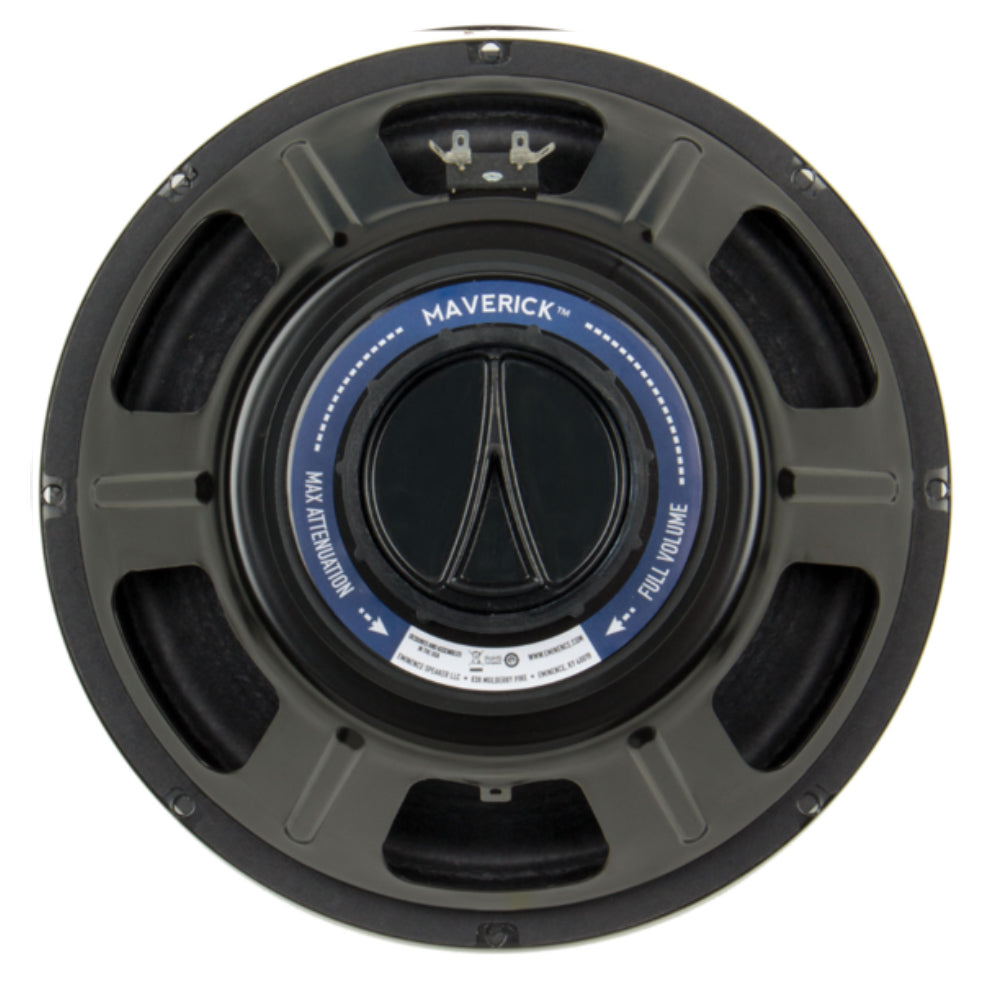

The Eminence Maverick? guitar speaker with patent-pending FDM? technology puts tonal control at your fingertips. Simply adjust the knob on the back of the speaker to attenuate volume while creating an overdriven, saturated tube tone.
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* | 8 Ω |
Power Rating** | |
Watts | 75 W |
Music Program | N/A |
Resonance | 82 Hz |
Usable Frequency Range | 75 Hz - 5.2 kHz |
Sensitivity*** | 92.5 - 99.5 dB |
Magnet Weight | 38 oz. |
Gap Height | 0.312", 7.92 mm |
Voice Coil Diameter | 1.75", 44 mm |
THIELE & SMALL PARAMETERS - MAX ATTENUATION | |
Resonant Frequency (fs) | 82.6 Hz |
DC Resistance (Re) | 5.96 Ω |
Coil Inductance (Le) | 0.38 mH |
Mechanical Q (Qms) | 16.26 |
Electromagnetic Q (Qes) | 6.16 |
Total Q (Qts) | 4.47 |
Compliance Equivalent Volume (Vas) | 48.71 liters / 1.72 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 24.42cc |
Mechanical Compliance of Suspension (Cms) | 0.13 mm/N |
BL Product (BL) | 3.76 T-M |
Diaphragm Mass Inc. Airload (MMs) | 28.2 grams |
Efficiency Bandwidth Product (EBP) | 13.4 |
Maximum Linear Excursion (Xmax) | .047 mm |
Surface Area of Cone (Sd) | 519.5 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
THIELE & SMALL PARAMETERS - FULL OUTPUT | |
Resonant Frequency (fs) | 82 Hz |
DC Resistance (Re) | 5.99 Ω |
Coil Inductance (Le) | 0.48m H |
Mechanical Q (Qms) | 16.77 |
Electromagnetic Q (Qes) | 1.17 |
Total Q (Qts) | 1.09 |
Compliance Equivalent Volume (Vas) | 48.71 liters / 1.72 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 24.42 cc |
Mechanical Compliance of Suspension (Cms) | 0.13 mm/N |
BL Product (BL) | 8.71 T-M |
Diaphragm Mass Inc. Airload (MMs) | 29 grams |
Efficiency Bandwidth Product (EBP) | 71 |
Maximum Linear Excursion (Xmax) | 0.47 mm |
Surface Area of Cone (Sd) | 519.5 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | N/a |
Vented | Acceptable |
Driver Volume Displaced | 0.078 cu.ft. / 2.2 liters |
Overall Diameter | 12.03", 305.31 mm |
Baffle Hole Diameter | 10.97", 278.64 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.25", 6.35mm |
Mounting Holes B.C.D. | 11.63", 295.4mm |
Depth | 6.56", 166.68 mm |
Net Weight | 7.8 lbs, 3.54 kg |
Shipping Weight | 9.7 lbs, 4.4 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | FDM Technology |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
