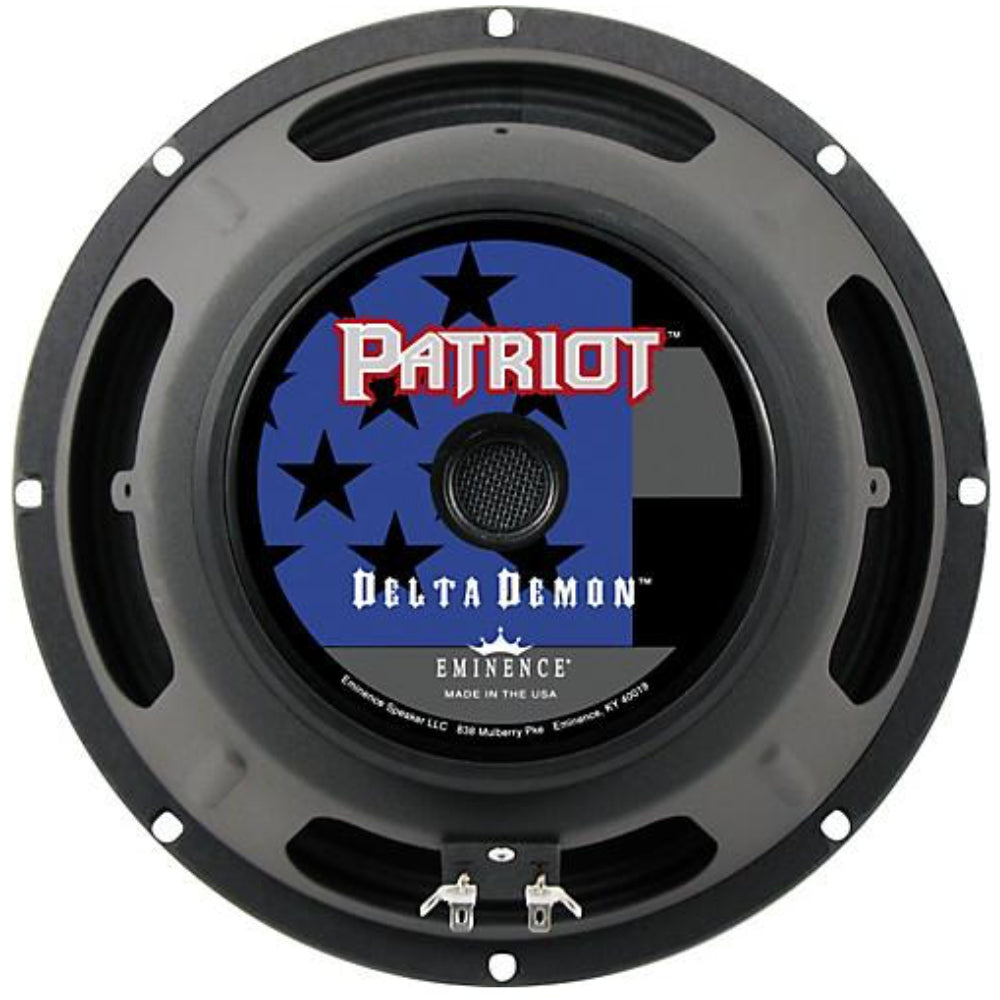

Eminence Patriot Delta Demon 10" 100W Guitar Speaker - The Speaker Factory
Eminence Patriot Delta Demon 10" 100W Guitar Speaker - The Speaker Factory

Brand: Eminence

Product Code: Deltadaemon10

Availability:In stock

$229.00 229.00

Wicked American tone, straight from the swamp.

A great speaker for that traditional Delta blues sound, as well as jazz and classic rock. Perfect for a one, 2, or 4x10" closed-back setup. Extremely balanced, dark, creamy, smooth tone. 100W RMS handling, 200W peak. 8 ohm impedance.

SPECIFICATIONS
  • Nominal Basket Diameter: 10", 254mm
  • Nominal Impedance*: 8 ohms
  • Power Rating: 100W
  • Resonance: 76Hz
  • Usable Frequency Range: 80Hz-3kHz
  • Sensitivity***: 96.9
  • Magnet Weight: 30 oz.
  • Gap Height: 0.312", 7.92mm
  • Voice Coil Diameter: 2", 50.8mm
  • THIELE & SMALL PARAMETERS
  • Resonant Frequency (fs)
  • 76HzDC Resistance (Re): 6.9
  • Coil Inductance (Le): 0.66mH
  • Mechanical Q (Qms): 15.06
  • Electromagnetic Q (Qes): 0.53
  • Total Q (Qts): 0.51
  • Compliance Equivalent Volume (Vas): 41.1 liters / 1.5 cu. ft.
  • Peak Diaphragm Displacement Volume (Vd): 88cc
  • Mechanical Compliance of Suspension (Cms): 0.22mm/N
  • BL Product (BL): 11.3 T-M
  • Diaphram Mass inc. Airload (Mms): 21 grams
  • Efficiency Bandwidth Product (EBP): 143
  • Maximum Linear Excursion (Xmax): 2.4mm
  • Surface Area of Cone (Sd): 366.1 cm
  • MOUNTING INFORMATION
  • Recommended Enclosurez: Sealed, (acceptable Vented)
  • Overall Diameter: 10.09", 256.2mm
  • Baffle Hole Diameter: 9.05", 229.7mm
  • Front Sealing Gasket: fitted as standard
  • Rear Sealing Gasket: fitted as standard
  • Mounting Holes Diameter: 0.25", 6.4mm
  • Mounting Holes B.C. D.: 9.66", 245.4mm
  • Depth: 3.8", 97mm
  • Net Weight: 6.8 lbs., 3.1 kg
  • Shipping Weight: 8.5 lbs., 3.9 kg
  • MATERIALS OF CONSTRUCTION
  • Coil Construction: Copper voice coil
  • Coil Former: Polyimide former
  • Magnet Composition: Ferrite magnet
  • Core Details: Vented core
  • Basket Materials: Pressed steel basket
  • Cone Composition: Paper Cone
  • Cone Edge Composition: Paper cone edge
  • Dustcap Composition: Solid composition paper dust cap
