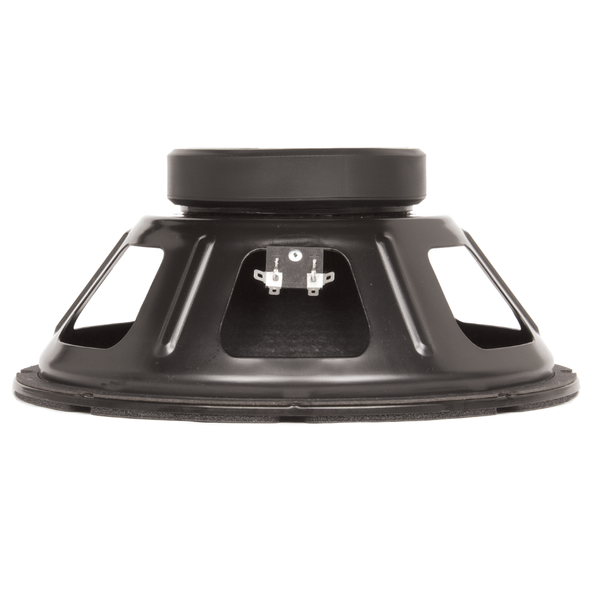

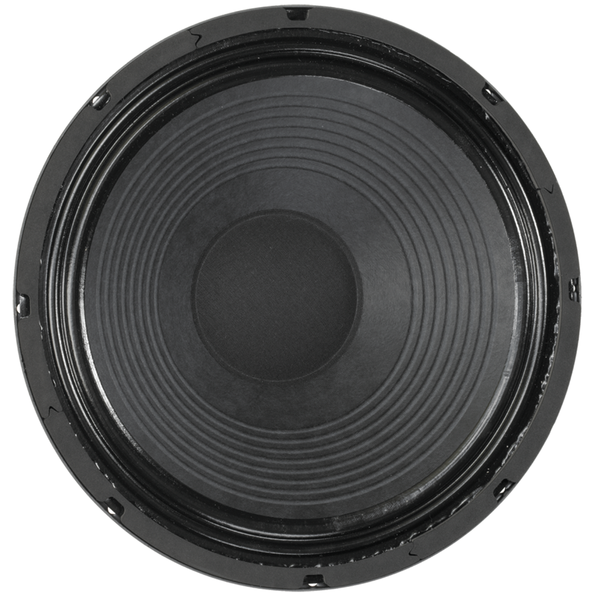

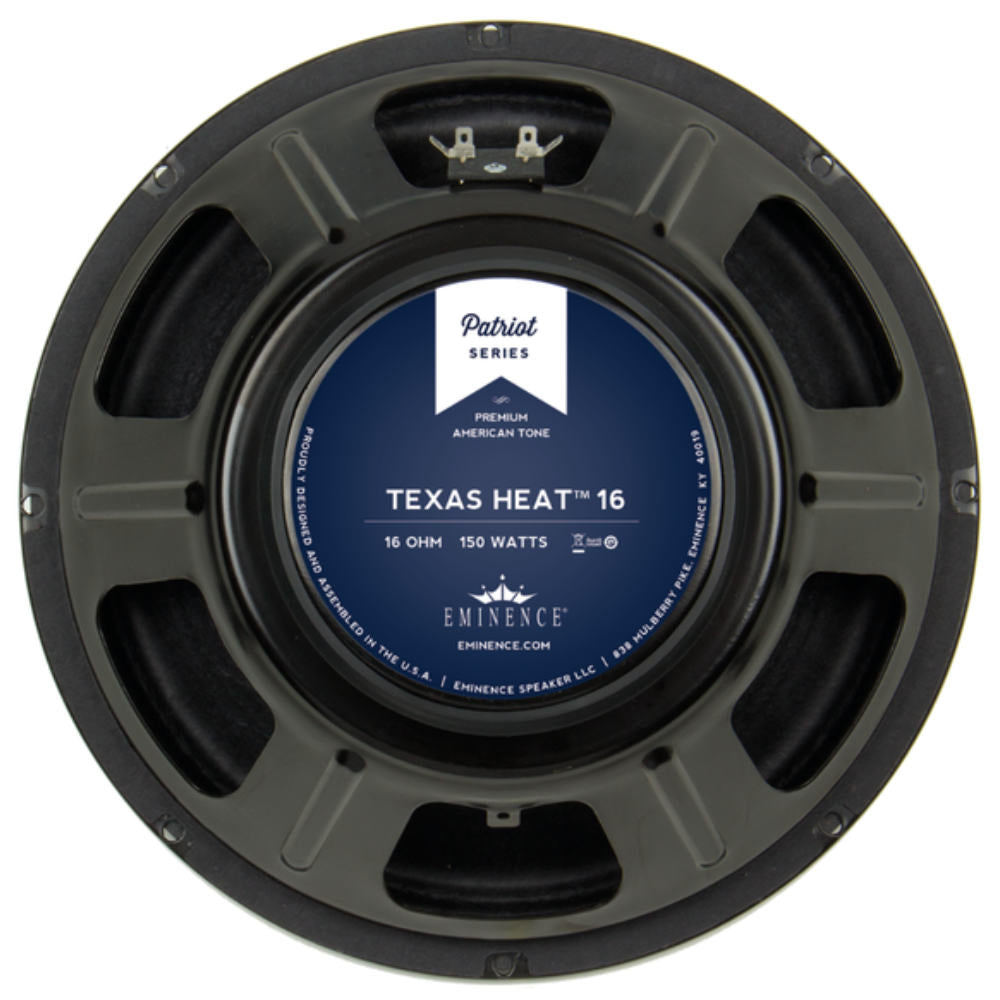

Eminence Texas Heat 16 12" 150 Watt 16 ohms
Eminence Texas Heat 4 12" 150 Watt 4 ohms
The Eminence Texas Heat is the All-American guitar speaker that?s packin? heat, Texas style. It delivers a nice warm, fat tone with top end bite and clarity to cut through a mix while maintaining a rich, bluesy tone. Very touch-sensitive
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* | 16 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 150 W |
Resonance | 91 Hz |
Usable Frequency Range | 70 Hz - 4.6 kHz |
Sensitivity* | 100.2 dB |
Magnet Weight | 38 oz. |
Gap Height | 0.312", 7.9 mm |
Voice Coil Diameter | 2", 51 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 91 Hz |
DC Resistance (Re) | 14.7 Ω |
Coil Inductance (Le) | 0.9m H |
Mechanical Q (Qms) | 12.48 |
Electromagnetic Q (Qes) | 0.87 |
Total Q (Qts) | 0.81 |
Compliance Equivalent Volume (Vas) | 44.5 liters / 1.57 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 41.6 cc |
Mechanical Compliance of Suspension (Cms) | 0.12 mm/N |
BL Product (BL) | 16 T-M |
Diaphragm Mass Inc. Airload (MMs) | 26 grams |
Efficiency Bandwidth Product (EBP) | 104 |
Maximum Linear Excursion (Xmax) | 0.8 mm |
Surface Area of Cone (Sd) | 519.5 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.071 cu.ft. / 2 liters |
Overall Diameter | 12", 304.8 mm |
Baffle Hole Diameter | 11.07", 281.2 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.25", 6.4mm |
Mounting Holes B.C.D. | 11.59", 294.4mm |
Depth | 5.1", 129.5 mm |
Net Weight | 8.3 lbs, 3.76 kg |
Shipping Weight | 10 lbs, 4.54 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
