Brand: Eminence

Product Code: PSD2002S-16

Availability:Out of stock

$219.99 219.99

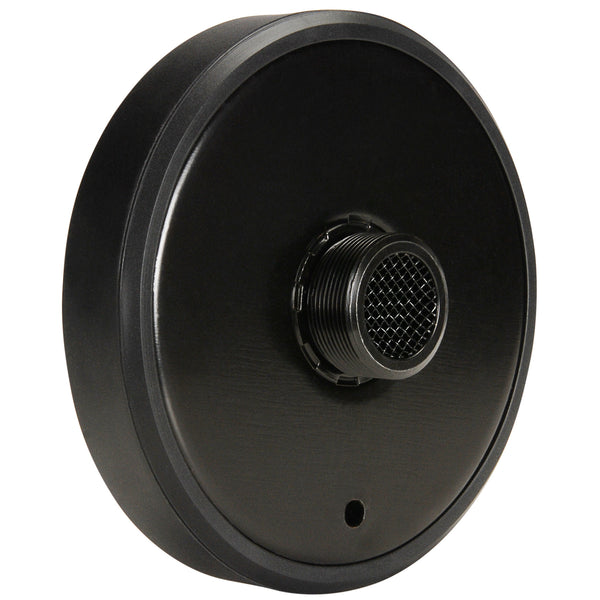

Eminence PSD2002S-16 Driver 1" 80 Watts 16 Ohm Screw On



SPECIFICATION
Throat Size 1", 25.4mm
Nominal Impedance* 16Ω
Minimum Impedance 14.8 ohm @ 2.9 kHz
Power Rating** 80 W (AES)
Resonance 0.54kHz
Usable Frequency Range 1200Hz-20kHz
Recommended Crossover 1.2 kHz / 18 dBkHz
Sensitivity*** 106.7
Magnet Material Ferrite
Magnet Weight 34oz, 0.96kg
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Polyimide
Diaphragm Material Titanium
DC Resistance (Re) 11.9Ω
MOUNTING INFORMATION
Overall Diameter 5.25", 133.4mm
Driver Volume Displaced 0.01 cu.ft., 0.5 liters
Depth 2.2", 55.9mm
Weight 4.7 lbs, 2.1 kg
Mounting Thread 1 3/8 in. 18 ext.
Mounting Holes Diameter N/A
Mounting Holes B.C.D. N/A
