Brand: Eminence

Product Code: E-1258-8ohm

Availability:In stock

$319.99 319.99

EMINENCE

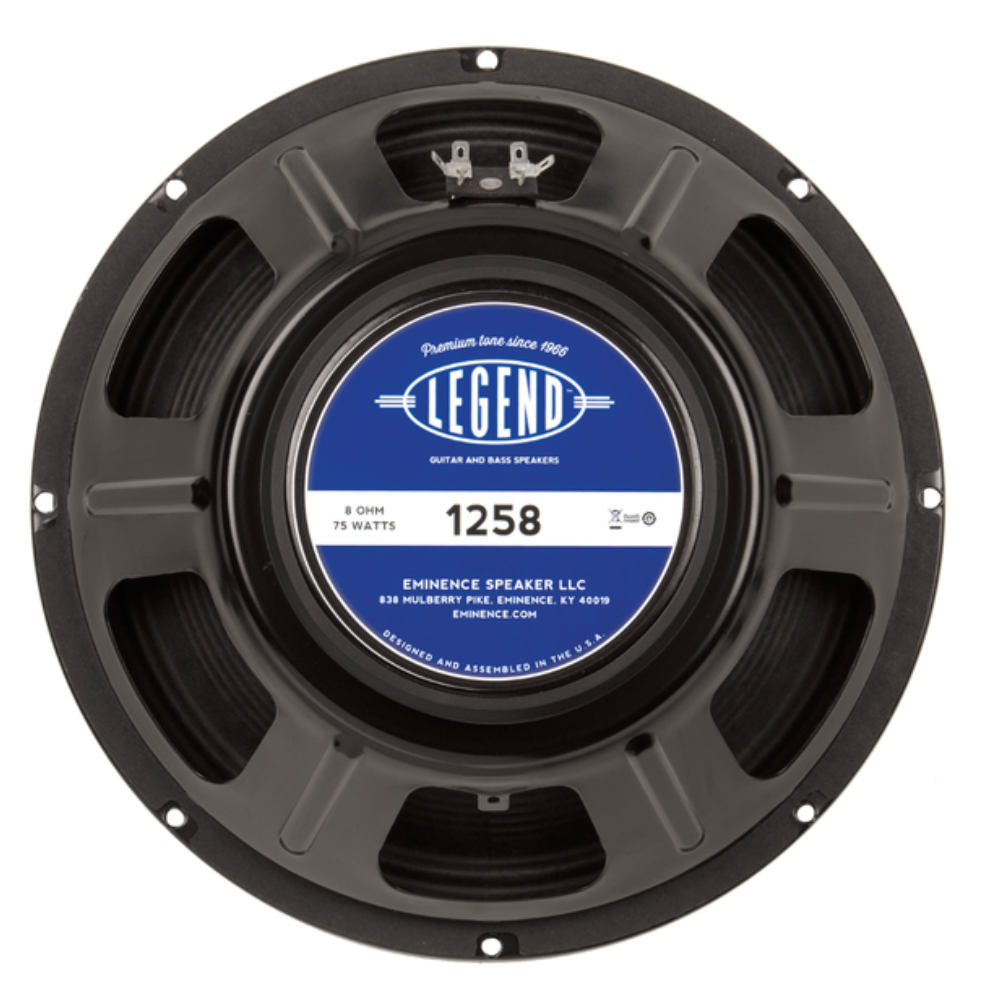

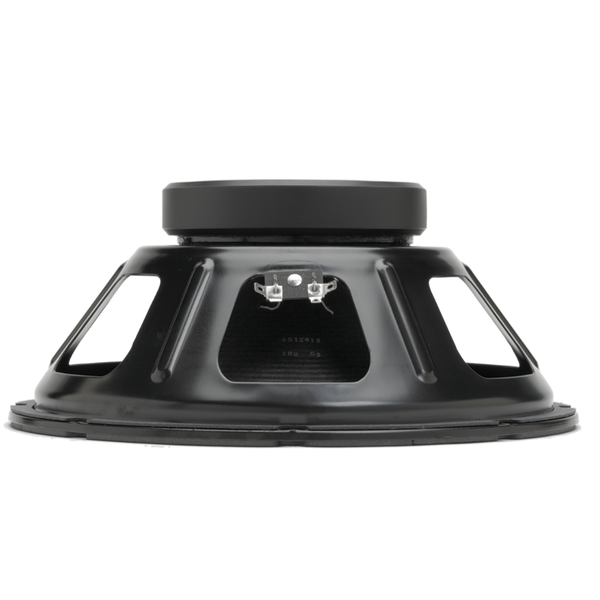

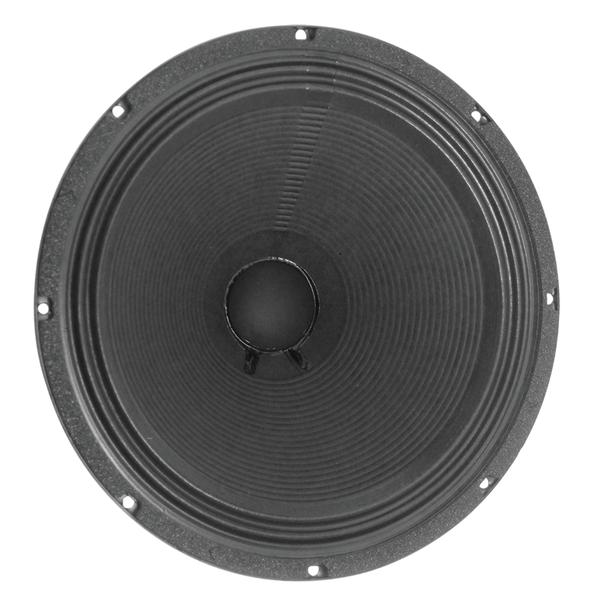

LEGEND 1258

12" Guitar Amp Speaker 8ohm
The Eminence Legend 1258 Guitar Speaker has vintage American growl, but with sparkle, definition and edgy top-end. Great for rock and roll, country, and blues. This Eminence speaker is an ideal vintage alnico Jensen replacement.
Eminence recommends the Legend 1258 Guitar Speaker as a direct replacement in the Basson B412 cabinet, and the Fender FM212R, Fender Blues Reissue, Fender Blues Junior, and the Behringer V-Tone Gmx212 combo amplifiers.

SPECIFICATIONS
    SPECIFICATION
    Nominal Basket Diameter 12", 305 mm
    Nominal Impedance* 8 Ω
    Power Rating*
    Program Power N/A
    Watts 75 W
    Resonance 94 Hz
    Usable Frequency Range 80 Hz - 4 kHz
    Sensitivity* 100.1 dB
    Magnet Weight 34 oz.
    Gap Height 0.312", 7.9 mm
    Voice Coil Diameter 1.5", 38 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs) 94 Hz
    DC Resistance (Re) 7.44 Ω
    Coil Inductance (Le) 0.7m H
    Mechanical Q (Qms) 6.15
    Electromagnetic Q (Qes) 1.18
    Total Q (Qts) 0.99
    Compliance Equivalent Volume (Vas) 32.5 liters / 1.15 cu.ft.
    Peak Diaphragm Displacement Volume (Vd) 24.3 cc
    Mechanical Compliance of Suspension (Cms) 0.09 mm/N
    BL Product (BL) 10.9 T-M
    Diaphragm Mass Inc. Airload (MMs) 32 grams
    Efficiency Bandwidth Product (EBP) 80
    Maximum Linear Excursion (Xmax) 0.48 mm
    Surface Area of Cone (Sd) 506.7 cm2
    Maximum Mechanical Limit (Xlim) N/A
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    Sealed N/a
    Vented Acceptable
    Driver Volume Displaced 0.069 cu.ft. / 1.96 liters
    Overall Diameter 12.03", 305.6 mm
    Baffle Hole Diameter 11.07", 281.2 mm
    Front Sealing Gasket Yes
    Rear Sealing Gasket Yes
    Mounting Holes Diameter 0.25", 6.4mm
    Mounting Holes B.C.D. 11.59", 294.4mm
    Depth 4.9", 124.5 mm
    Net Weight 7.8 lbs, 3.54 kg
    Shipping Weight 9.9 lbs, 4.49 kgs
    MATERIALS OF CONSTRUCTION
    Coil Construction Copper voice coil
    Coil Former Polyimide former
    Magnet Composition Ferrite magnet
    Core Details Non-vented core

    Basket Materials Pressed steel basket
    Cone Composition Paper cone
    Cone Edge Composition Paper cone edge
    Dust Cap Composition Solid composition paper dust cap
