Celestion Heritage Series G12-65 - 12" 65 Watt

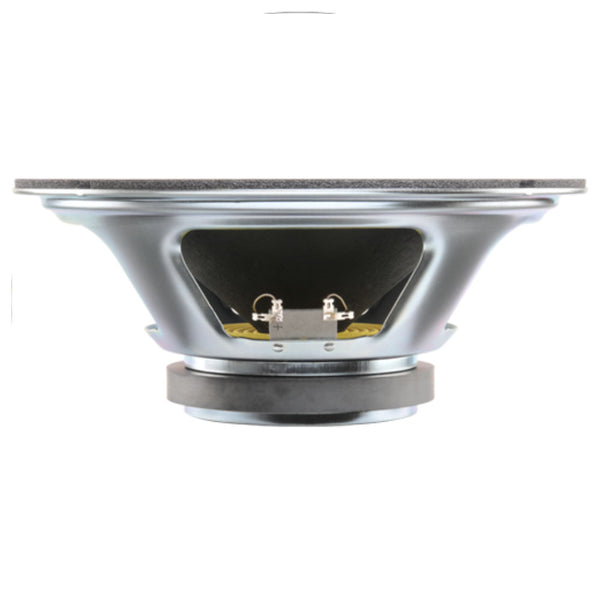

Celestion Heritage Series G12-65
12" 65 Watt
Originally created in the late 70s using more modern materials and techniques for a higher power handling, the G12-65 is widely regarded as one of the best guitar speakers ever produced for use in a 4x12 cabinet. With its fast attack and tightly controlled low end, the G12-65 had become a firm favourite with hard rock players by the early 80s. The precisely tuned mid-range and crisp defined top-end contribute to an aggressive crunch sound that punches through the mix while the mid-range warmth and detail give weight and depth to single notes.
Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.
8Ω Frequency Response
General Specifications
Nominal diameter
12", 305mm
Power rating
65Wrms
Nominal impedance
Available 8Ω or 15Ω
Sensitivity
97dB
Chassis type
Pressed steel
Voice coil diameter
1.75", 44.5mm
Voice coil material
Round copper
Magnet type
Ceramic
Magnet weight
35oz, 0.99kg
Frequency range
80-5000Hz
Resonance frequency, Fs
85Hz
DC resistance, Re
Available 6.9Ω or 11.8Ω
Mounting Information
Cut-out diameter
11.1", 283mm
Diameter
12.2", 309mm
Magnet structure diameter
5.7", 145mm
Mounting slot dimensions
0.31", 7.9mm Ø
Mounting slot PCD
11.7", 297mm
Number of mounting slots
4
Overall depth
5.0", 128mm
Unit weight
7.7lb, 3.5kg
