Brand: Celestion

Product Code: CSeventy80-8ohm

Availability:Out of stock

$149.00 149.00

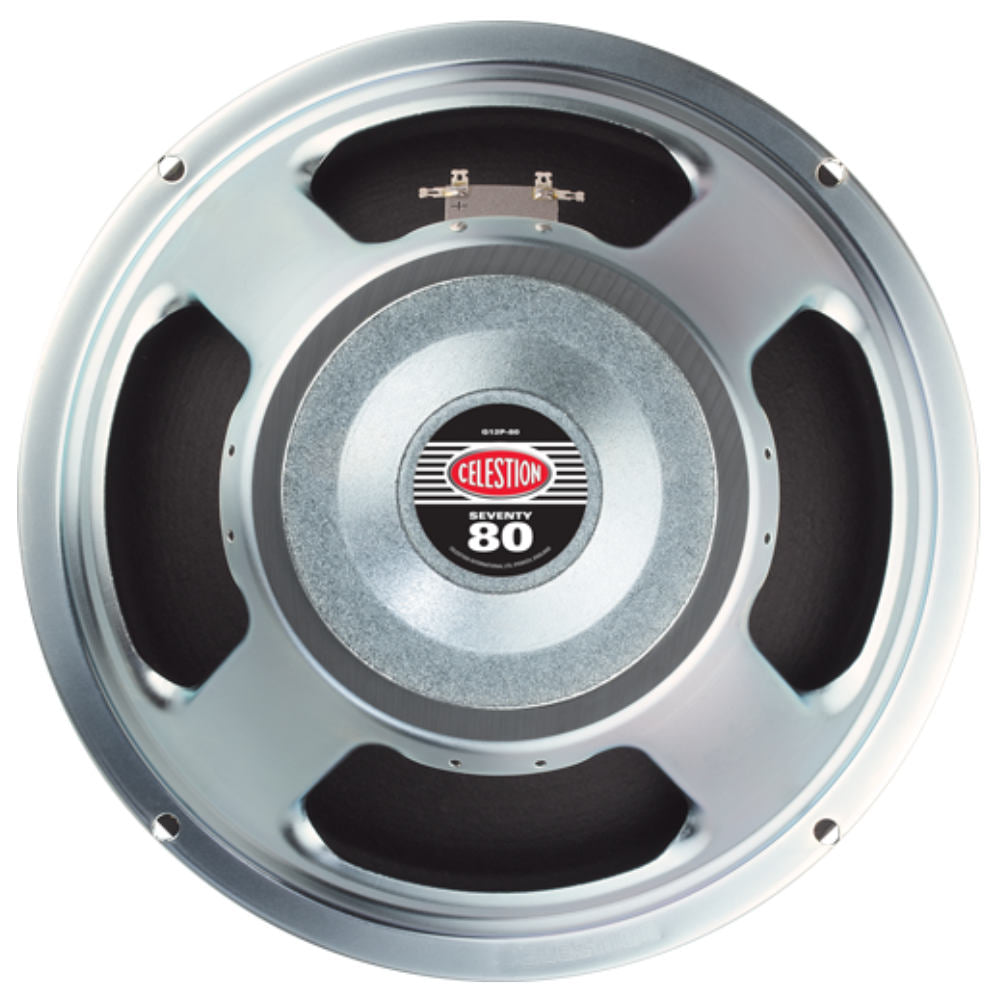

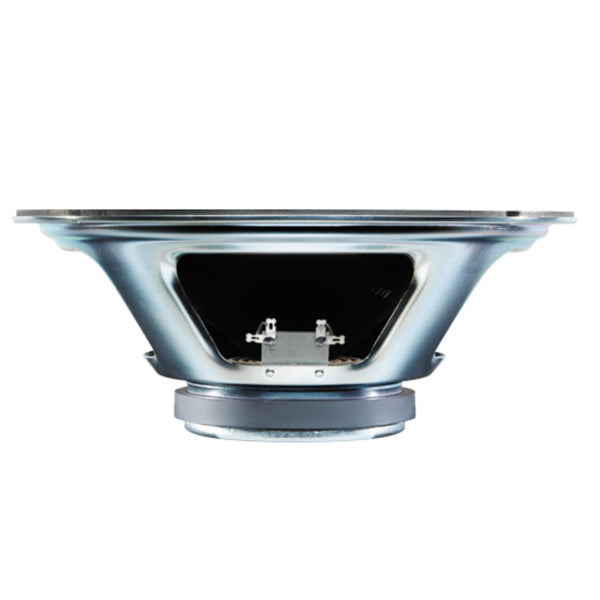

One of our best sellers, this 12-inch guitar speaker meets the expanded frequency range often requested by the new generation of amp manufacturers. The Seventy 80 is detailed and crisply defined, with a tightly controlled low-end and punchy, aggressive upper mid-range. The top-end response is also subtly increased. Used singly, in pairs or quartets – it is capable of reproducing a wide range of sounds and styles whilst adding the undeniable Celestion character to any amp.

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

8Ω Frequency Response

Product Graph

General Specifications

Nominal diameter                  12", 305mm
Power rating                            80Wrms
Nominal impedance              Available 8Ω or 16Ω
Sensitivity                                  98dB
Chassis type                             Pressed steel
Voice coil diameter                 1.75", 44.5mm
Voice coil material                   Round copper
Magnet type                              Ceramic
Magnet weight                         31oz, 0.88kg
Frequency range                      80-5000Hz
Resonance frequency, Fs      85Hz
DC resistance, Re                    Available 6.1Ω or 10.41Ω

Mounting Information

Cut-out diameter                       11.1", 283mm
Diameter                                      12.2", 309mm
Magnet structure diameter      5.3", 134mm
Mounting slot dimensions       0.31", 7.9mm Ø
Mounting slot PCD                    11.7", 297mm
Number of mounting slots       4
Overall depth                                 4.7", 119mm
Unit weight                                    6.8lb, 3.1kg
