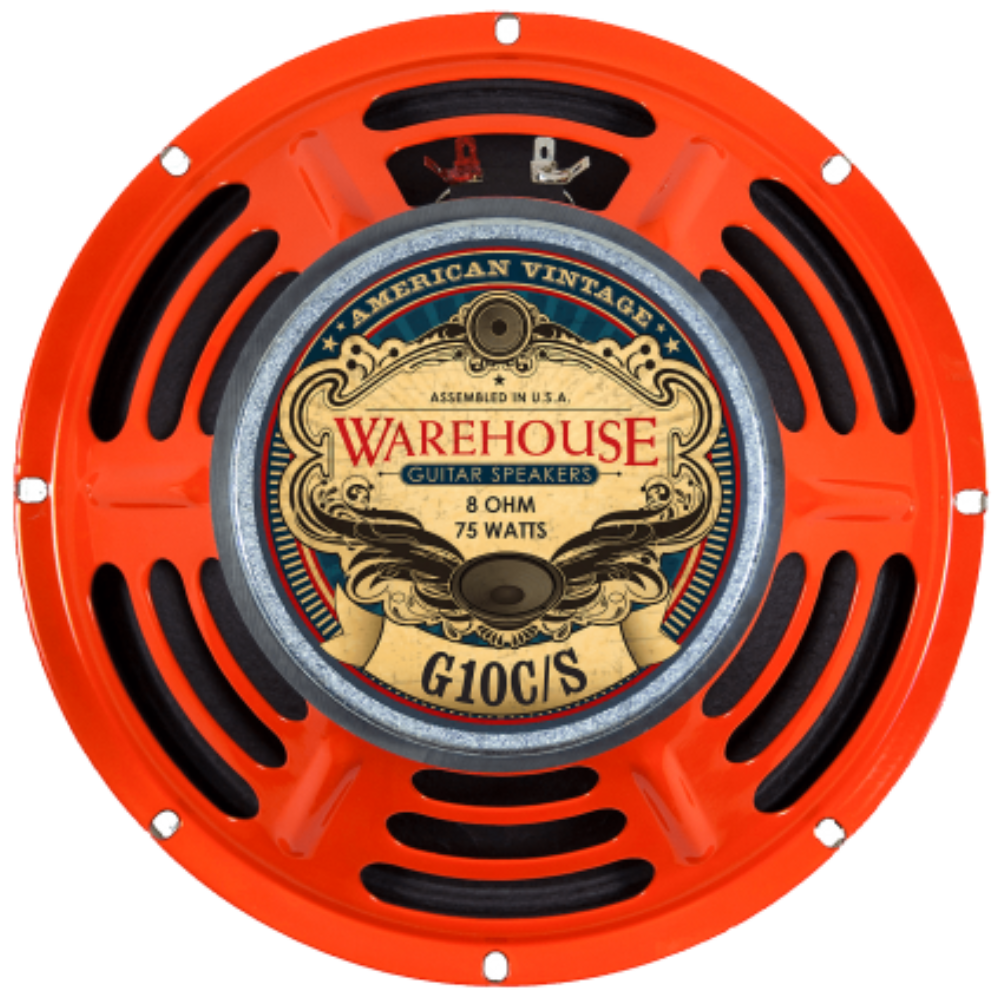

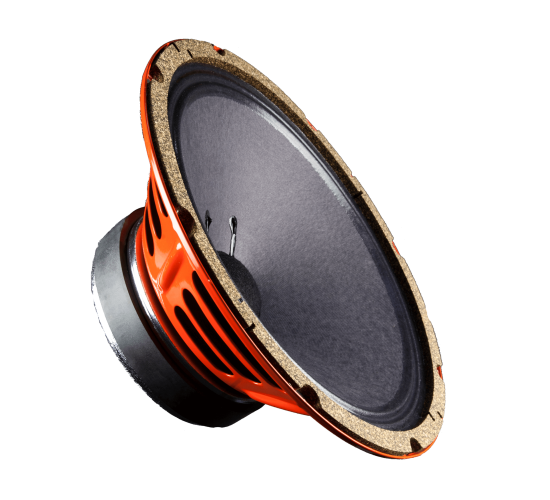

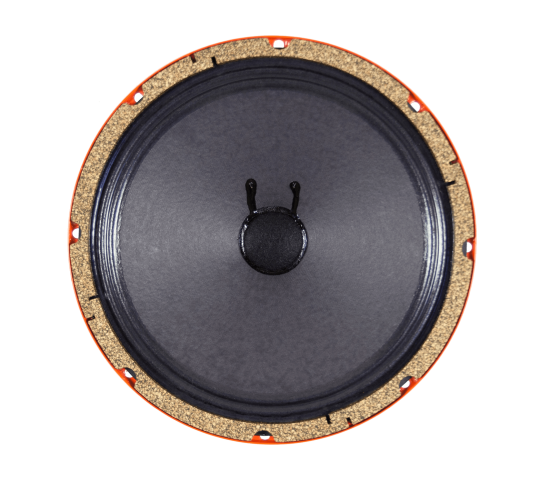

WGS G10C/S 10" 75 WATT American Vintage Guitar Speaker
The G10C/S, a true WGS original, has become a favourite of players the world over. With its smooth cone and larger motor, it offers a slightly rounder top end and smooth breakup when driven hard while maintaining the punch and clarity you already love in a 10" speaker. It's really great for taming the top end in bright amps with its warm sound and depth in tone. The G10C/S also remains one of the most pedal-friendly tens in our line. So whether you are trying to beef up your vintage combo or build the perfect tone platform, the G10C/S is the place to start
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 94.49 Hz
- DC Resistance (Re): 6.3 Ohm
- Coil Inductance (Le): 8 mH
- Mechanical Q (Qms): 8.081
- Electromagnetic Q (Qes): 0.6081
- Total Q (Qts): 0.5655
- Compliance Equiv. Vol. (Vas): 1.056 cu ft
- Mech. Compliance of Susp. (Cms): 155.752 mm/N
- BL Product (BL): T-M
- Diaphragm Mass Inc. Airload (Mms): 18.2153 grams
- Surface Area of Cone (Sd): 366.0962 cm squared
- Sound Pressure Level (spl): 98.02 db
