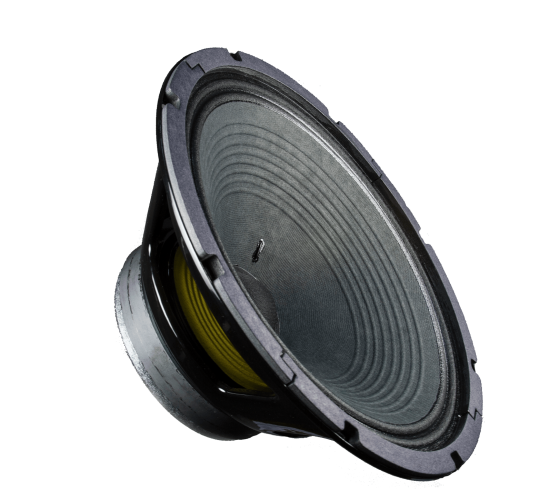

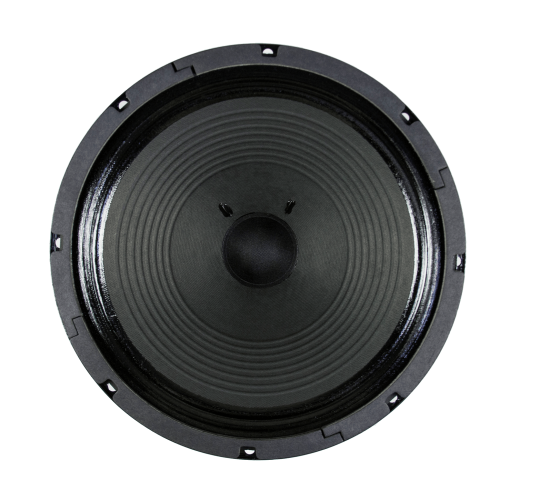

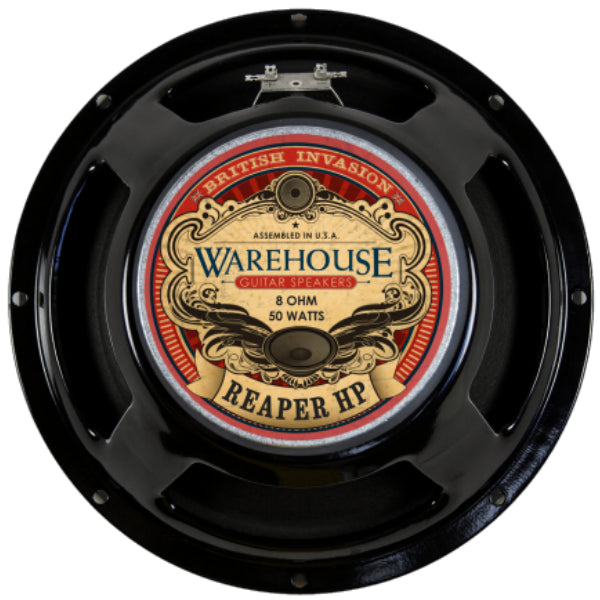

WGS Reaper HP 12" 50 Watt British Invasion Guitar Speaker
The 12” high power Reaper HP™ is designed to go where the 30-watt version couldn't. If you want a good clean tone with just the right amount of breakup at medium-high volume, then this is your speaker. This 50-watt version is both warmer and more powerful than the 30-watt version.
Weight: 4.6kg
Mounting Information
- Diameter 12.2”
- Overall depth 5.3”
- Cut-out diameter 11.1”
- Mounting slot dimensions 0.31”
- Number of mounting slots: 8
- Mounting slot PCD 11.7”
THIELE-SMALL PARAMETERS
- Resonant Frequency (Fs): 101.9 Hz
- DC Resistance (Re): 6.7 Ohm
- Coil Inductance (Le): 8 mH
- Mechanical Q (Qms): 8.613
- Electromagnetic Q (Qes): 0.7235
- Total Q (Qts): 0.6674
- Compliance Equiv. Vol. (Vas): 1.384 cu ft
- Mech. Compliance of Susp. (Cms): 87.6 mm/N
- BL Product (BL): 13.76 T-M
- Diaphragm Mass Inc. Airload (Mms): 27.8476 grams
- Surface Area of Cone (Sd): 558.645 cm squared
- Sound Pressure Level (spl): 99.42 db
