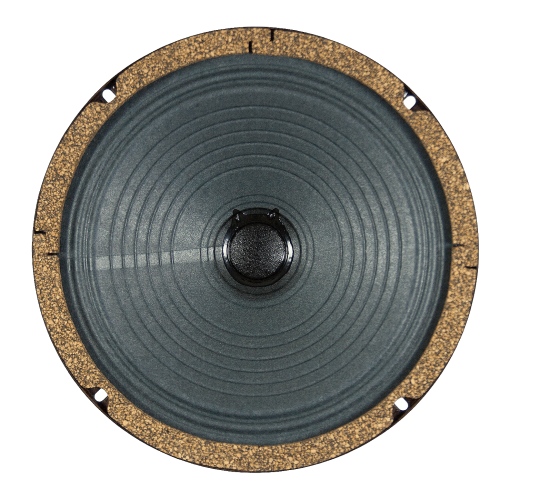

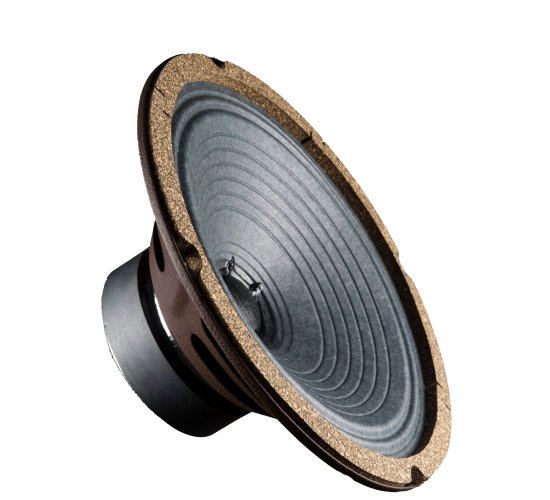

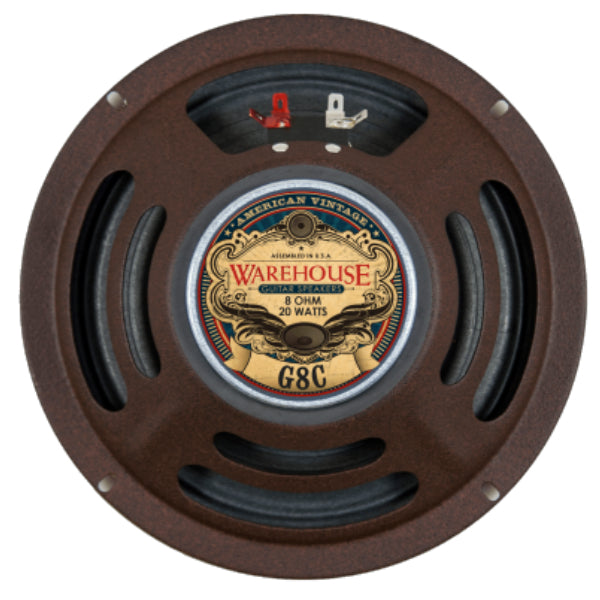

American Vintage 8" G8C 20 watt Speaker

Regular price
Sold out
Sale price
$99.00

The G8C ceramic speaker will breathe new life into your small combo. Boasting a fair amount of low end for an 8" speaker and balanced mids, this little monster puts out some serious sound. We personally love it with the Fender Champ. If you are looking for vintage tone with increased headroom and output in a small package, the G8C is your speaker.

Physical Dimensions:

  • Basket Diameter - 8 3/16"
  • Magnet Diameter - 3 1/4"
  • Overall Depth - 3 1/2"

THIELE-SMALL PARAMETERS

  • Resonant Frequency (Fs): 148.07 Hz
  • DC Resistance (Re): 6.7 Ohm
  • Coil Inductance (Le): 8 mH
  • Mechanical Q (Qms): 9.6715
  • Electromagnetic Q (Qes): 0.9538
  • Total Q (Qts): 0.8682
  • Compliance Equiv. Vol. (Vas): 0.257 cu ft
  • Mech. Compliance of Susp. (Cms): 110.714 mm/N
  • BL Product (BL): T-M
  • Diaphragm Mass Inc. Airload (Mms): 10.4353 grams
  • Surface Area of Cone (Sd): 214.0839 cm squared
  • Sound Pressure Level (spl): 95.78 db
