British Invasion 12" VETERAN 30 60 Watt

Regular price
Sold out
Sale price
$296.99

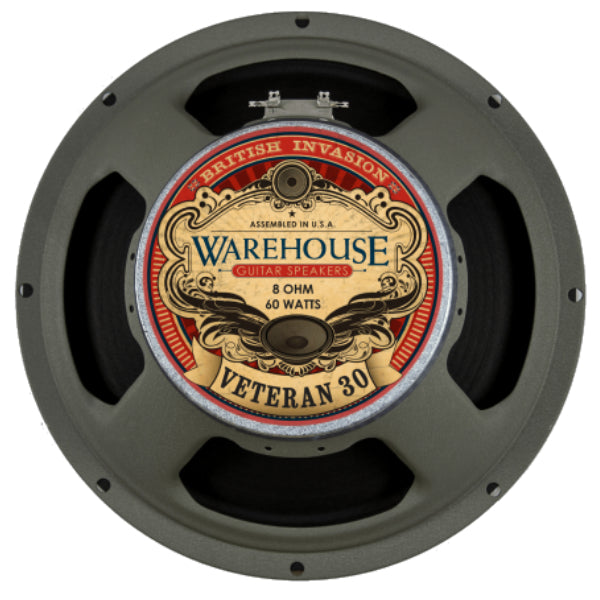

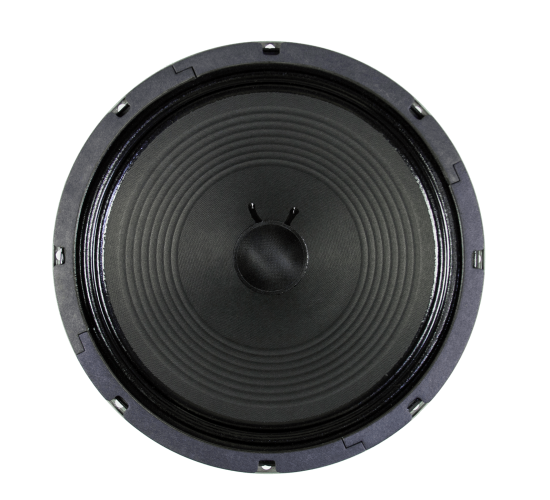

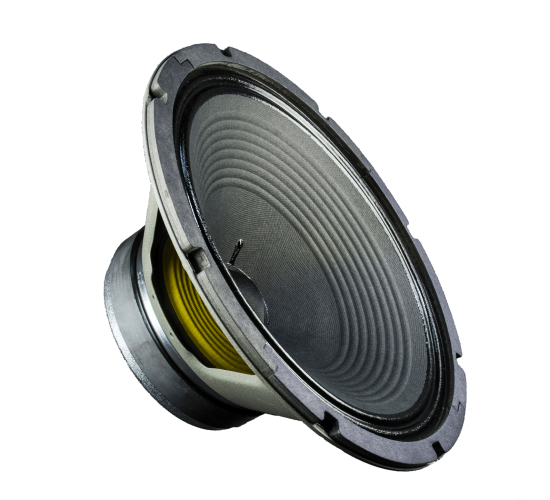

The 12” Veteran 30™ speaker from WGS is tonally superior to Celestion's™ Vintage 30™ speaker. The tonal improvement is in the upper-mids. The Veteran 30™ speaker has smoothed out the upper-mid "spike" notorious in the Vintage 30™ speaker.

Weight: 4.6kg

MOUNTING INFORMATION

  • Diameter 12.2”
  • Overall depth 5.3”
  • Cut-out diameter 11.1”
  • Mounting slot dimensions 0.31”
  • Number of mounting slots: 8
  • Mounting slot PCD 11.7”
THIELE-SMALL PARAMETERS
  • Resonant Frequency (Fs): 94.84 Hz
  • DC Resistance (Re): 7.99 Ohm
  • Coil Inductance (Le): 0.35 mH
  • Mechanical Q (Qms): 12.15
  • Electromagnetic Q (Qes): 0.78
  • Total Q (Qts): 0.74
  • Compliance Equiv. Vol. (Vas): 18.53 cu ft
  • Mech. Compliance of Susp. (Cms): 0.10 mm/N
  • BL Product (BL): 13.25 T-M
  • Diaphragm Mass Inc. Airload (Mms): 28.88 grams
  • Surface Area of Cone (Sd): 366.10 cm squared
  • Sound Pressure Level (spl): 99.84 db
