Brand: Celestion

Product Code: 28/G12-EVH-8

Availability:Out of stock

$249.00 249.00

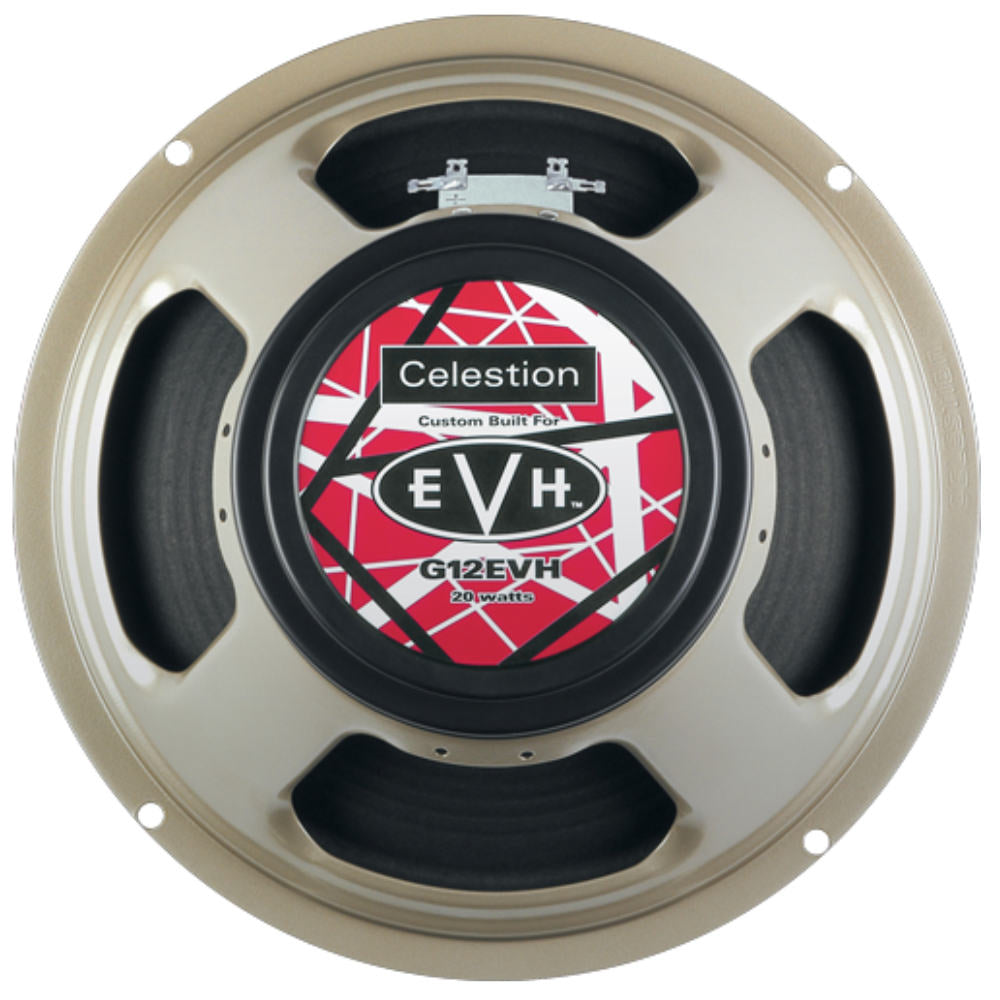

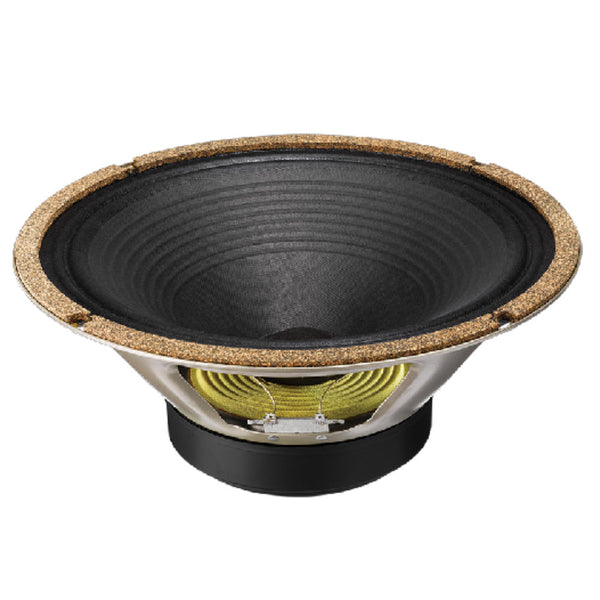

Throughout his career, whether in the studio or on the stage, the Celestion 20-watt 'Greenback' has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound. When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice - Celestion. The Heritage Series G12M guitar speaker faithfully reproduces the sonic qualities of the original '60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone.

eneral Specifications

Nominal diameter                      12", 305mm
Power rating                                20Wrms
Nominal impedance                   8Ω & 15Ω
Sensitivity                                     96dB
Chassis type                                Pressed steel
Voice coil diameter                     1.75", 44.5mm
Voice coil material                      Round copper
Magnet type                                Ceramic
Magnet weight                             35oz, 0.99kg
Frequency range                          75-5000Hz
Resonance frequency, Fs          75Hz
DC resistance, Re                       6.57Ω & 12.13Ω

Mounting Information

Cut-out diameter                          11.1", 283mm
Diameter                                        12.2", 309mm
Magnet structure diameter          5.9", 150mm
Mounting slot PCD                       11.7", 297mm
Number of mounting slots           4
Overall depth                                 5.1", 130mm
Unit weight                                     7.9lb, 3.6kg



8Ω Frequency Response

Product Graph
