Celestion G10 Gold 10" 40 Watt - The Speaker Factory
Celestion G10 Gold 10" 40 Watt - The Speaker Factory

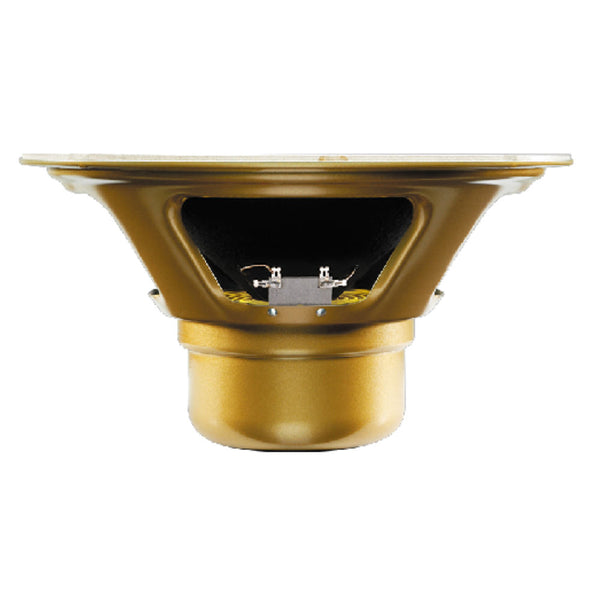

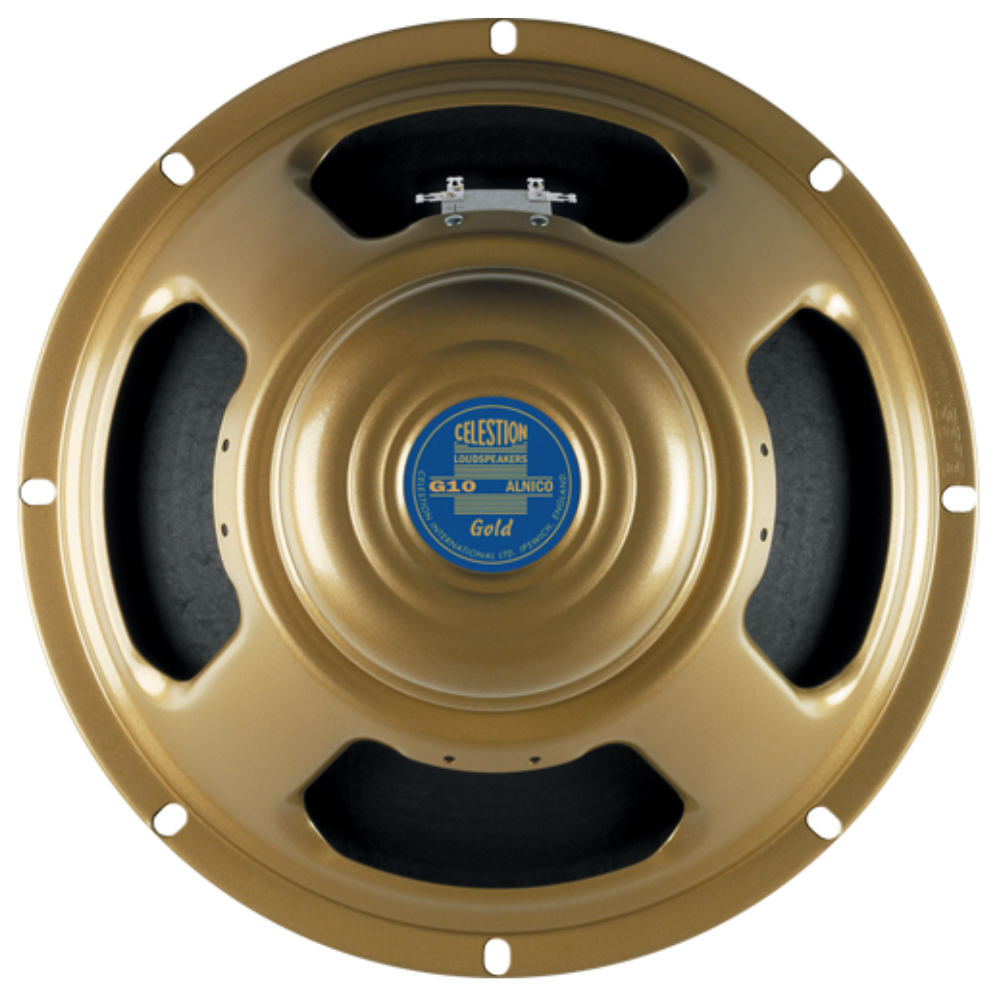

Celestion G10 Gold 10" 40 Watt

Regular price
$349.00
Sale price
$349.00

Following the great reviews we received for the Gold 12", we realised there was also a need for a speaker that conveyed the Alnico mellowness of the original Blue, with the speed and response of a 10" driver.

The G10 Gold is the ultimate 10" guitar speaker, blending unmistakable Alnico class with a rich low-end, creamy midrange and vintage chiming top-end. Springy, warm, revealing and highly expressive, it can be used singly or in pairs to add a classy sheen to any amp, or in a 4x10 configuration for higher volume depth, warmth and shimmer, with less of the boom associated with 4x12 cabinets.

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

8Ω Frequency Response

Product Graph

General Specifications

Nominal diameter                  10", 254mm
Power rating                          40Wrms
Nominal impedance               Available 8Ω or 15Ω
Sensitivity                               98dB
Chassis type                           Pressed steel
Voice coil diameter                 1.75", 44.5mm
Voice coil material                   Round copper
Magnet type                            Alnico
Frequency range                     80-6000Hz
Resonance frequency, Fs        80Hz
DC resistance, Re                    6.66Ω and 13.56Ω

Mounting Information

Cut-out diameter                    9.0", 229mm
Diameter                                10.1", 256mm
Magnet structure diameter    4.7", 119mm
Mounting slot dimensions     0.25", 6.5mm Ø
Mounting slot PCD                9.6", 244mm
Number of mounting slots     8
Overall depth                          5.3", 135mm
Unit weight                             6.0lb, 2.7kg
