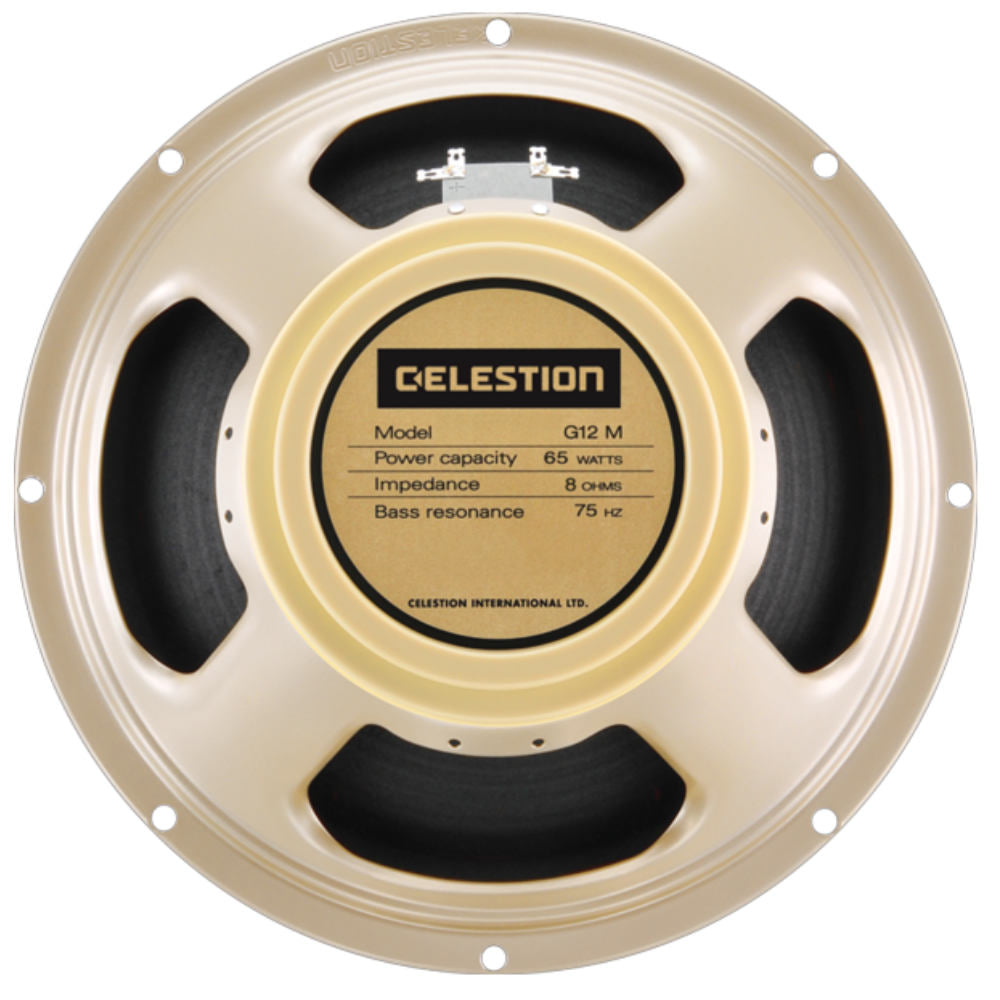

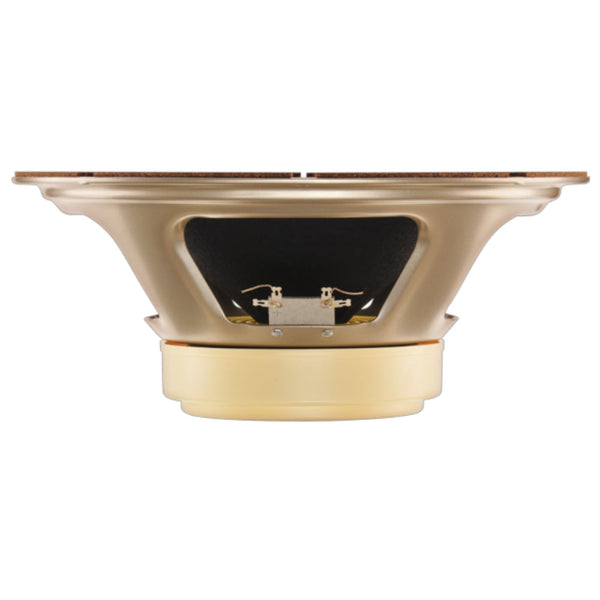

Celestion G12M-65 Creamback 12" 65 Watt

Regular price
$198.35
Sale price
$198.35

The G12M Greenback is perhaps the definitive vintage Celestion ceramic magnet guitar speaker. Developed in the mid-sixties, it was quickly adopted by players like Hendrix, Clapton, Beck and Page, who typified the louder and more aggressive blues rock playing styles that came to characterize that era.The G12M-65 Creamback produces the familiar woody G12M tone, but handles greater power making it ideally suited for today's amps, when a vintage tone is desired. The increased power handling brings with it low end grunt complementing the warm and vocal mid range, crunchy upper- mids and sweet, refined highs.

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

General Specifications

Nominal diameter                  12", 305mm
Power rating                          65Wrms
Nominal impedance              8Ω & 16Ω
Sensitivity                              97dB
Chassis type                          Pressed steel
Voice coil diameter                1.75", 44.5mm
Voice coil material                  Round copper
Magnet type                           Ceramic
Magnet weight                       35oz, 0.99kg
Frequency range                    75-5000Hz
Resonance frequency, Fs      75Hz
DC resistance, Re                  6.7Ω & 13.1Ω

Mounting Information

Cut-out diameter                   11.1", 283mm
Diameter                                12.2", 309mm
Magnet structure diameter     5.9", 150mm
Mounting slot PCD                 11.7", 297mm
Number of mounting slots      8
Overall depth                          5.1", 130mm
Unit weight                             7.9lb, 3.6kg



8Ω Frequency Response

Product Graph
