Brand: Celestion

Product Code: CPulse15

Availability:Out of stock

$279.00 279.00

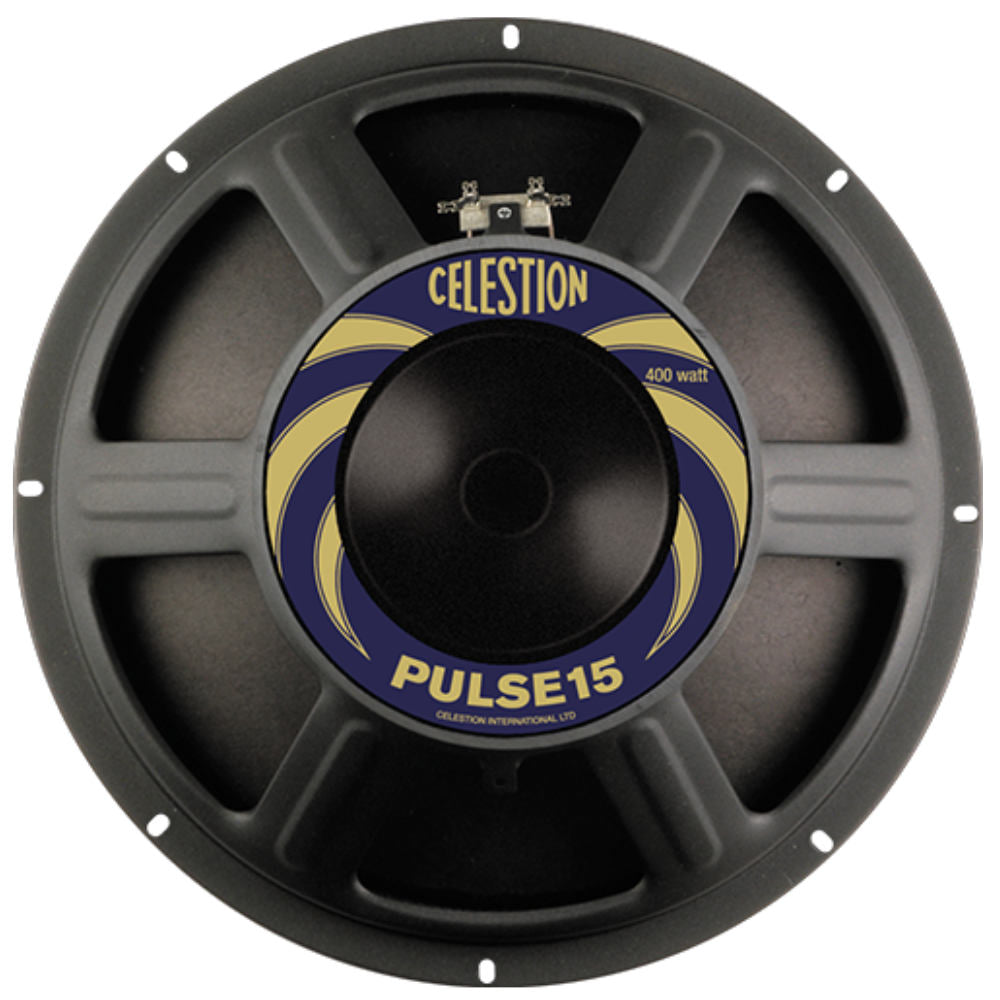

Pulse 15

With a longer voice coil for increased ‘throw’ and a multi-roll surround that provides exceptional linearity and superb bass extension, the 400-watt PULSE 15 is impeccably-designed sonic artillery. Featuring a Kevlar-loaded cone and rigid steel chassis designed for maximum energy transfer, this robust and reliable 15 inch bass guitar speaker truly is a powerhouse of deep bass tone.

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

General Specifications

Nominal diameter                  15", 381mm
Power rating                          400W
Nominal impedance               8Ω
Sensitivity                              96dB
Magnet type                          Ferrite
Voice coil diameter                3", 76.2mm
Coil material                          Copper
Cone material                        Kevlar loaded paper
Former material                     Polyimide
Surround material                 Cloth-sealed
Frequency range                   40-3500Hz
Xmax                                     0.18", 4.75mm
Gap depth                             0.31", 8mm
Voice coil winding width        0.68", 17.5mm

Small Signal Parameters

D                                           0.33m/12.99in
Fs                                         35.7Hz
Mms                                     83.32g/2.94oz
Qms                                     4.75
Qes                                      0.474
Mmd                                    55.06g/1.94oz
Qts                                       0.431
Re                                        5.76Ω
Vas                                       246.7lt/8.7cu.ft.
BI                                         15.06Tm
Cms                                     0.24mm/N
Rms                                     3.93kg/s
Le (at 1kHz)                         0.87mH

Mounting Information

Cut-out diameter                   13.8", 351mm
Diameter                                15.2", 385mm
Mounting slot dimensions      0.36x0.24", 9.2x6.2mm Ø
Mounting slot PCD                14.5", 369mm
Number of mounting slots     8
Overall depth                         6.4", 162mm
Unit weight                            10.8lb, 4.9kg

8Ω Frequency Response

Product Graph
