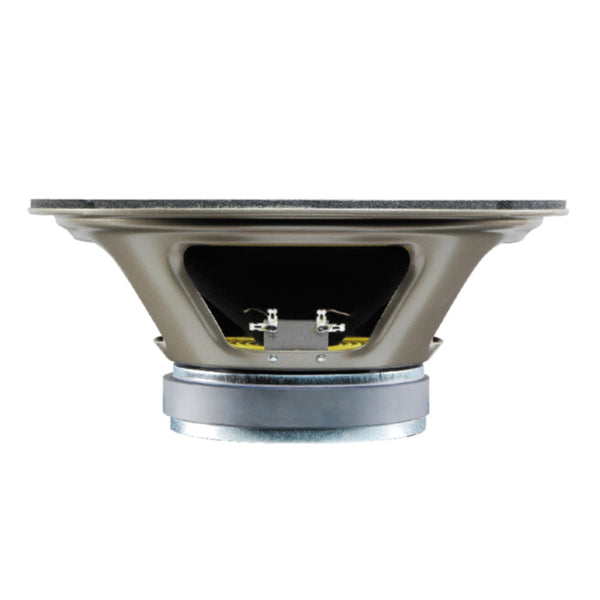

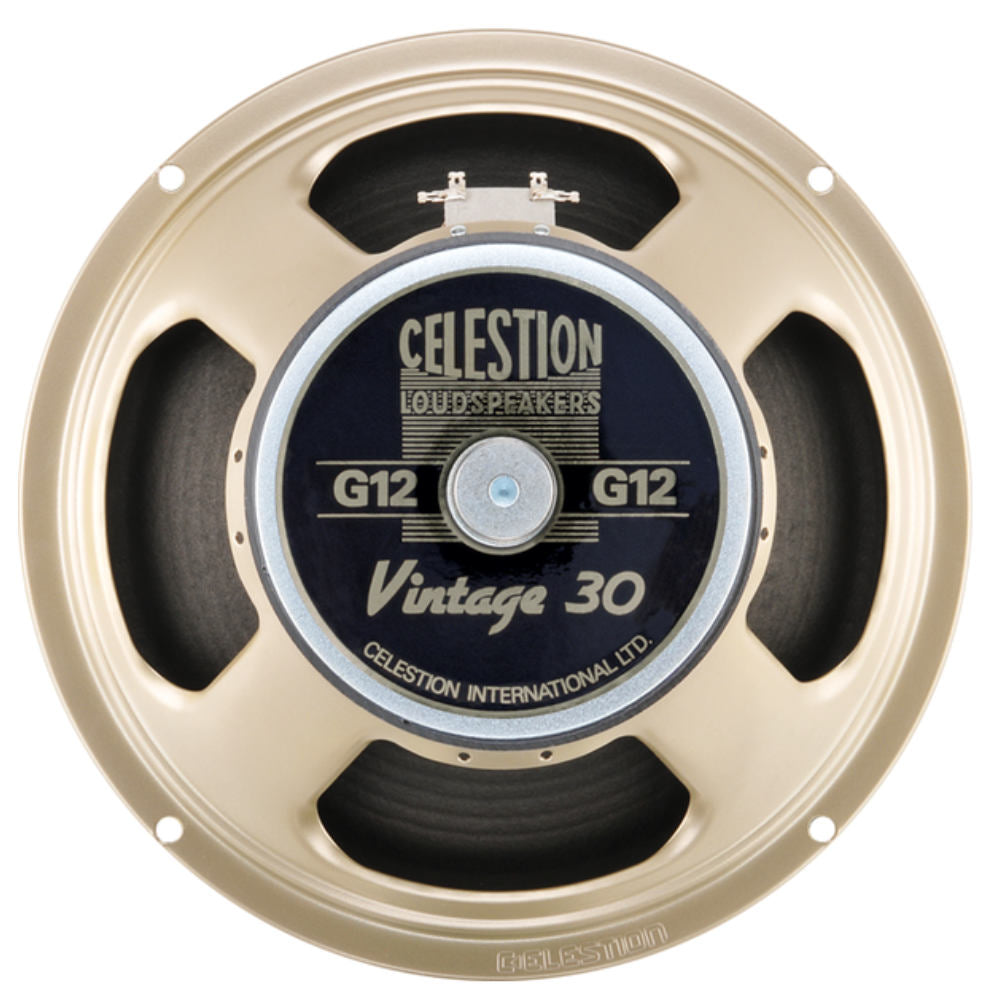

Celestion Vintage 30 12" 60 Watt

Regular price
$168.99
Sale price
$168.99

Back in 1986 a new breed of hard rock player was on the rise. To meet the demands of the players and their increasingly 'hot-rodded' amplifiers, we set out to develop a modern guitar speaker, capable of handling much more power and overdrive. To achieve this, we coupled our 'H' magnet (the closest in performance to Alnico) with a new cone and voice coil employing contemporary materials. Our most revealing speaker, the Vintage 30 features enormously detailed and complex overtones, a warm low-end, a famously rich vocal mid-range and a beautifully detailed top-end. Used singly to reveal the complexities in hand-wired boutique amps, or in quartets for a wonderfully intricate vintage 3D crunch, the Vintage 30 sound has been captured on thousands of recordings from a diverse range of notable players including Slash, Steve Stevens and Peter Frampton.

Please note: Due to the large variations in speakers the handling time on Celestion is up to 7 working days.

General Specifications

Nominal diameter              12", 305mm
Power rating                      60Wrms
Nominal impedance          Available 8Ω or 16Ω
Sensitivity                          100dB
Chassis type                      Pressed steel
Voice coil diameter             1.75", 44.5mm
Voice coil material              Round copper
Magnet type                       Ceramic
Magnet weight                    50oz, 1.42kg
Frequency range                 70-5000Hz
Resonance frequency, Fs     75Hz
DC resistance, Re               Available 7.3Ω or 12.9Ω

Mounting Information

Cut-out diameter                 11.1", 283mm
Diameter                              12.2", 309mm
Magnet structure diameter   6.1", 156mm
Mounting slot dimensions    0.31", 7.9mm Ø
Mounting slot PCD              11.7", 297mm
Number of mounting slots   4
Overall depth                       5.3", 135mm
Unit weight                           10.4lb, 4.7kg
