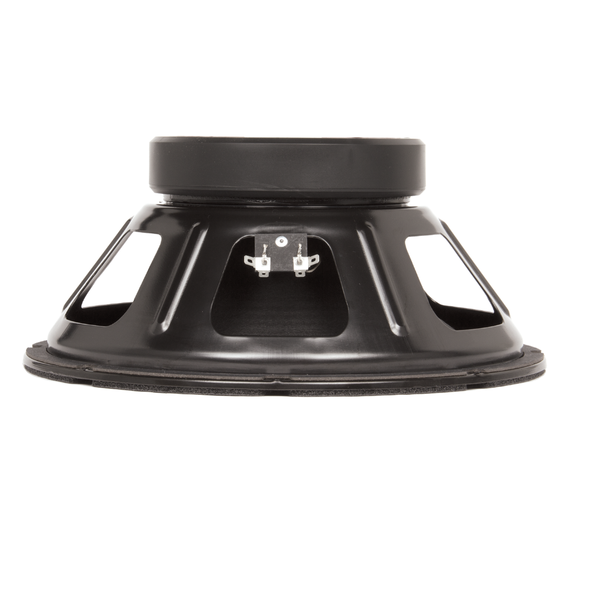

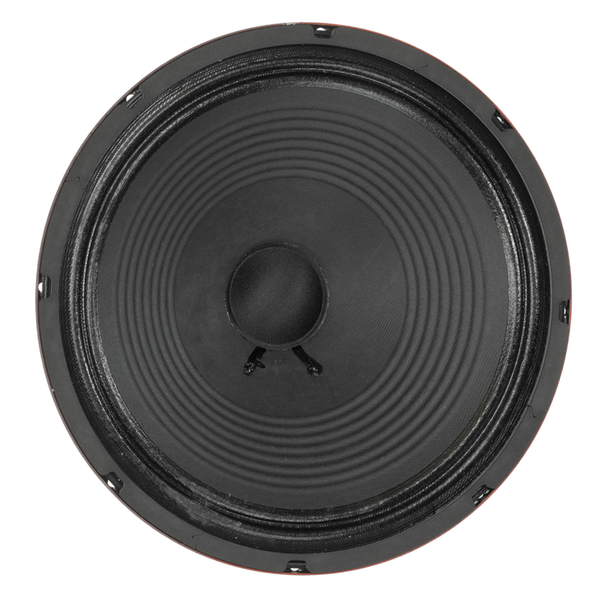

Eminence The Governor 16 12" 75 Watt 16 ohms
Eminence Redcoat Series The Governor 12" 75 Watt
The Eminence Governor guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. British cousin to Red White and Blues
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* | 16 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 75 W |
Resonance | 103 Hz |
Usable Frequency Range | 80 Hz - 5 kHz |
Sensitivity* | 102.2 dB |
Magnet Weight | 56 oz. |
Gap Height | 0.312", 7.9 mm |
Voice Coil Diameter | 1.75", 44 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 103 Hz |
DC Resistance (Re) | 14 Ω |
Coil Inductance (Le) | 0.7m H |
Mechanical Q (Qms) | 12.51 |
Electromagnetic Q (Qes) | 0.66 |
Total Q (Qts) | 0.63 |
Compliance Equivalent Volume (Vas) | 32.8 liters / 1.16 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 64.4 cc |
Mechanical Compliance of Suspension (Cms) | 0.09 mm/N |
BL Product (BL) | 19.5 T-M |
Diaphragm Mass Inc. Airload (MMs) | 28 grams |
Efficiency Bandwidth Product (EBP) | 157 |
Maximum Linear Excursion (Xmax) | 1.24 mm |
Surface Area of Cone (Sd) | 519.5 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.079 cu.ft. / 2.25 liters |
Overall Diameter | 12.03", 305.6 mm |
Baffle Hole Diameter | 11.07", 281.2 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.25", 6.4mm |
Mounting Holes B.C.D. | 11.59", 294.4mm |
Depth | 5.2", 132.1 mm |
Net Weight | 10.8 lbs, 4.9 kg |
Shipping Weight | 12.6 lbs, 5.72 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Nomex former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
