Brand: Eminence

Product Code: ALPHA-8MRA

Availability:Out of stock

$259.00 259.00

Recommended for pro audio and bass guitar applications as a midrange. Sealed basket makes this woofer independent of enclosure design.

Nominal Basket Diameter 8", 203 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 250 W
Watts 125 W
Resonance 514 Hz

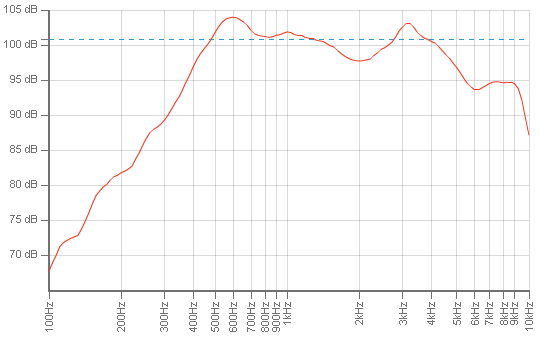

Usable Frequency Range 400 Hz - 4.8 kHz
Sensitivity* 100.9 dB
Magnet Weight 20 oz.
Gap Height 0.25", 6.4 mm
Voice Coil Diameter 1.5", 38 mm
Resonant Frequency (fs) 514 Hz
DC Resistance (Re) 7.32 Ω
Coil Inductance (Le) 0.34m H
Mechanical Q (Qms) 4.48
Electromagnetic Q (Qes) 2.08
Total Q (Qts) 1.42
Compliance Equivalent Volume (Vas) 0.8 liters / 0.03 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 0 cc
Mechanical Compliance of Suspension (Cms) 0.01 mm/N
BL Product (BL) 8.9 T-M
Diaphragm Mass Inc. Airload (MMs) 7 grams
Efficiency Bandwidth Product (EBP) 247
Maximum Linear Excursion (Xmax) 1.6 mm
Surface Area of Cone (Sd) 205.9 cm2
Maximum Mechanical Limit (Xlim) 3 mm
Recommended Enclosure Volume
Sealed N/a
Vented - liters / - cu.ft.
Driver Volume Displaced 0.02 cu.ft. / 0.58 liters
Overall Diameter 8.22", 208.8 mm
Baffle Hole Diameter 7.19", 182.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.22", 5.6mm
Mounting Holes B.C.D. 7.78", 197.6mm
Depth 3.25", 82.6 mm
Net Weight 4.4 lbs, 2 kg
Shipping Weight 5.1 lbs, 2.31 kgs
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed steel basket with closed back
Cone Composition Paper Cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition paper dust cap
