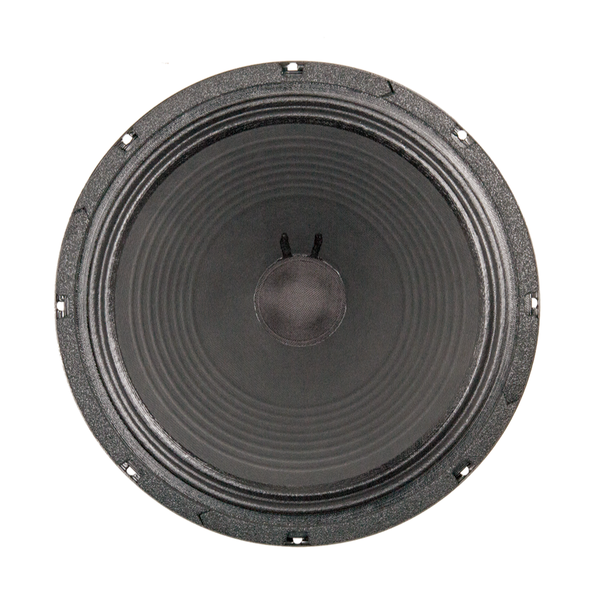

Eminence CV-65 12" 65 Watts Guitar Speaker
Eminence RF10C 10" Guitar Speaker 50 Watts 8 Ohm Ferrite
Tapping in to another flavor of classic British tone, the 12" CV-65 features warm, throaty mids, sweet, articulate highs, and nice, detailed harmonic complexity. As compared to the 75 watt model, the 65 watt CV-65 is more round and full in the lows, less aggressive in the mids, and is more focused and articulate on the highs.
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* |
8 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 65 W |
Resonance | 76 Hz |
Usable Frequency Range | 80 Hz - 5 kHz |
Sensitivity* | 100.6 dB |
Magnet Weight | 34 oz. |
Gap Height | 0.313", 8 mm |
Voice Coil Diameter | 1.75", 44 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 76 Hz |
DC Resistance (Re) | 6.9 Ω |
Coil Inductance (Le) | 0.53m H |
Mechanical Q (Qms) | 19.85 |
Electromagnetic Q (Qes) | 0.6 |
Total Q (Qts) | 0.59 |
Compliance Equivalent Volume (Vas) | 59.03 liters / 2.08 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 65.5 cc |
Mechanical Compliance of Suspension (Cms) | 0.15 mm/N |
BL Product (BL) | 12.66 T-M |
Diaphragm Mass Inc. Airload (MMs) | 29 grams |
Efficiency Bandwidth Product (EBP) | 126 |
Maximum Linear Excursion (Xmax) | 1.23 mm |
Surface Area of Cone (Sd) | 532.4 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | N/a |
Vented | N/a |
Driver Volume Displaced | 0.069 cu.ft. / 1.96 liters |
Overall Diameter | 12.17", 309.1 mm |
Baffle Hole Diameter | 11.13", 282.7 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.24", 6.1mm |
Mounting Holes B.C.D. | 11.75", 298.5mm |
Depth | 5.13", 130.2 mm |
Net Weight | 7.3 lbs, 3.31 kg |
Shipping Weight | 9.4 lbs, 4.26 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Nomex former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Full molded paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
