Brand: Eminence

Product Code: CV-7516-16ohm

Availability:In stock

$339.99 339.99

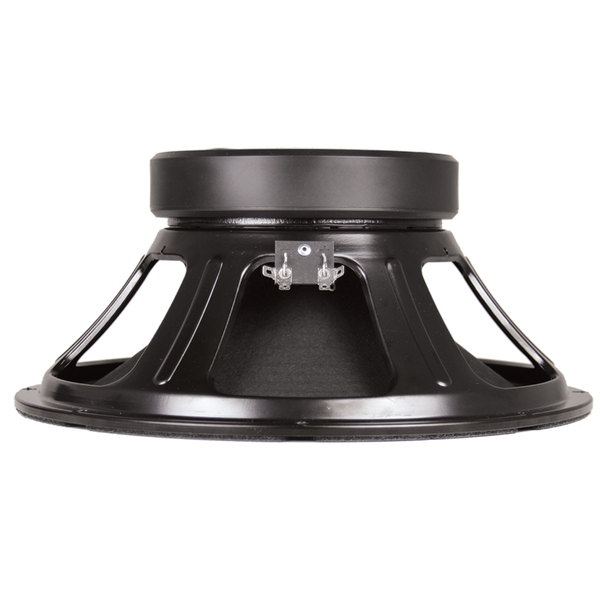

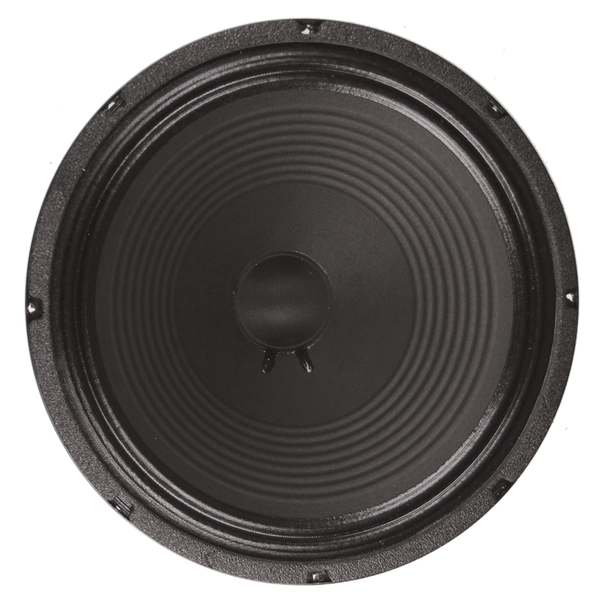

Eminence CV-7516 12" Guitar Speaker 75 Watts 16 Ohm

The epitome of British tone with a complete tonal balance?.grunt and punch in the lows, warm/tailored mids, and nice, clear, open/airy highs.

SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power N/A
Watts 75 W
Resonance 80 Hz
Usable Frequency Range 80 Hz - 5.7 kHz
Sensitivity* 101.9 dB
Magnet Weight 56 oz.
Gap Height 0.313", 8 mm
Voice Coil Diameter 1.75", 44 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 80 Hz
DC Resistance (Re) 14.23 Ω
Coil Inductance (Le) 0.85m H
Mechanical Q (Qms) 21.33
Electromagnetic Q (Qes) 0.49
Total Q (Qts) 0.48
Compliance Equivalent Volume (Vas) 56.2 liters / 1.98 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 64 cc
Mechanical Compliance of Suspension (Cms) 0.15 mm/N
BL Product (BL) 20.05 T-M
Diaphragm Mass Inc. Airload (MMs) 28 grams
Efficiency Bandwidth Product (EBP) 163
Maximum Linear Excursion (Xmax) 1.23 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented N/a
Driver Volume Displaced 0.079 cu.ft. / 2.25 liters
Overall Diameter 12.17", 309.1 mm
Baffle Hole Diameter 11.13", 282.7 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.24", 6.1mm
Mounting Holes B.C.D. 11.75", 298.5mm
Depth 5.25", 133.4 mm
Net Weight 10.8 lbs, 4.9 kg
Shipping Weight 12.5 lbs, 5.67 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Nomex former
Magnet Composition Ferrite magnet
Core Details Non-vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Zurette dust cap
