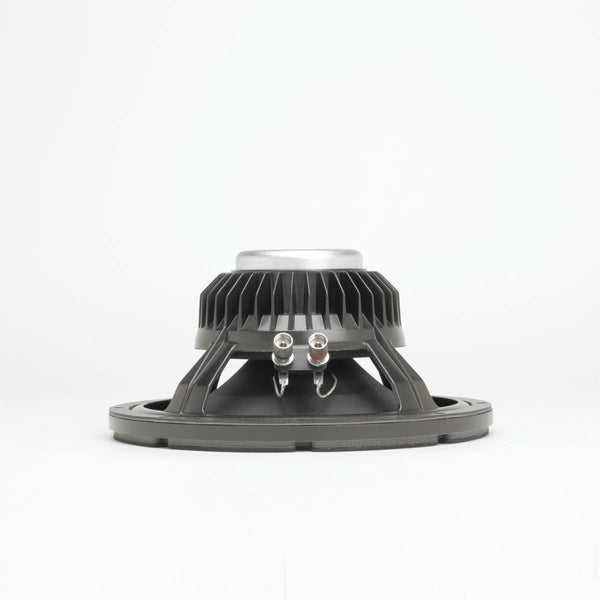

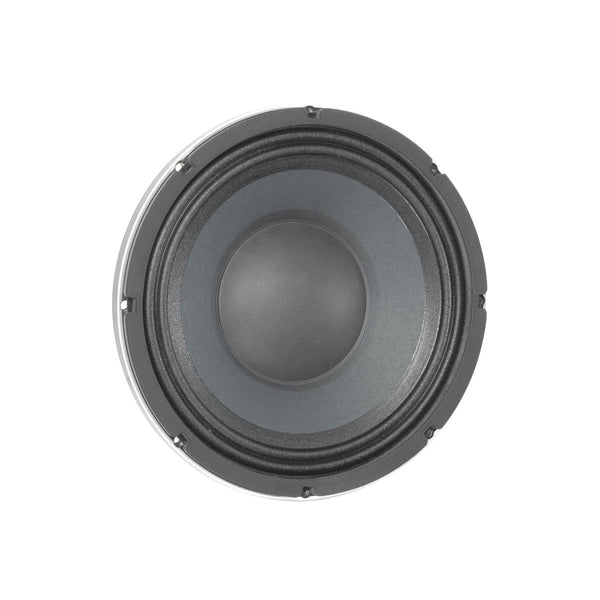

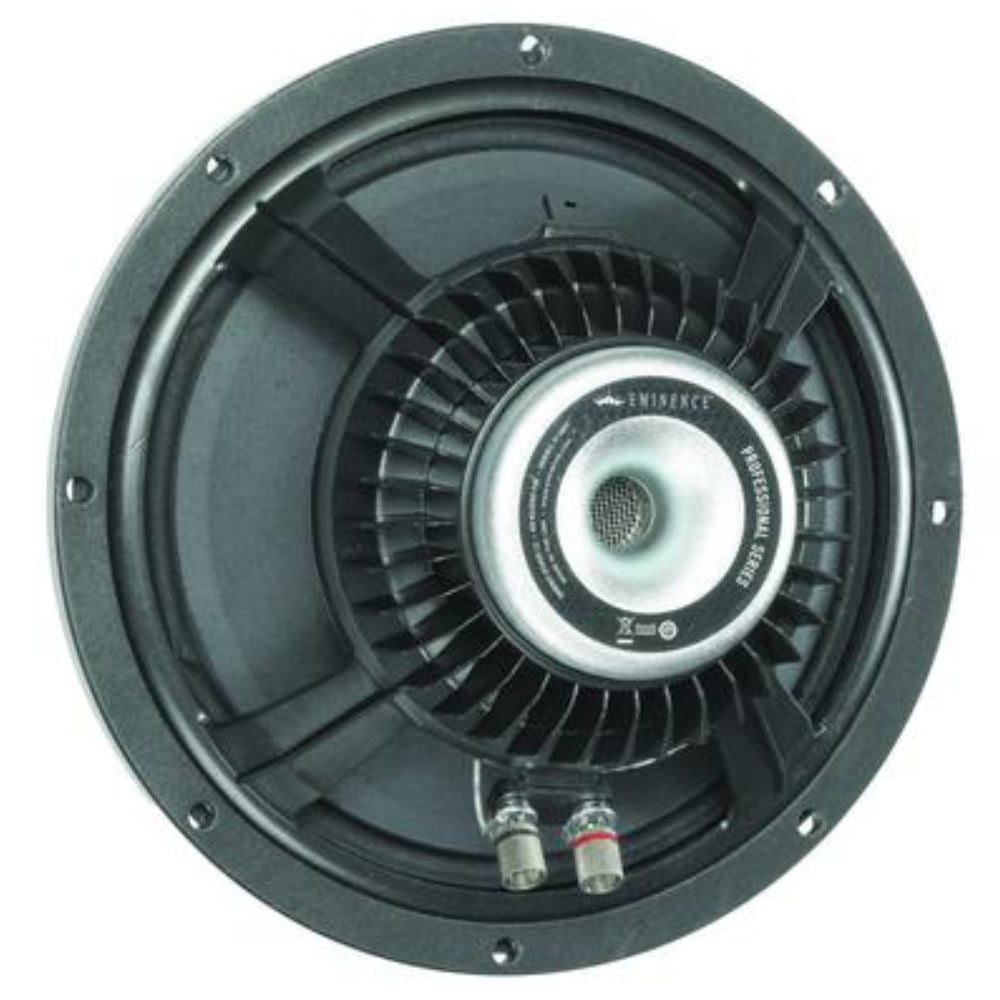

Eminence DELTALITE II 2510 10in Speaker 250w 8 Ohm
Recommended for pro audio as a mid/hi or full-range and monitor. Also suited for bass guitar and works well in sealed or vented enclosures.
SPECIFICATION | |
Nominal Basket Diameter | 10", 254 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | 500 W |
Watts | 250 W |
Resonance | 53 Hz |
Usable Frequency Range | 60 Hz - 4 kHz |
Sensitivity* | 97.3 dB |
Magnet Weight | 7 oz. |
Gap Height | 0.275", 7 mm |
Voice Coil Diameter | 2.5", 64 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 53 Hz |
DC Resistance (Re) | 5.06 Ω |
Coil Inductance (Le) | 0.4m H |
Mechanical Q (Qms) | 5.76 |
Electromagnetic Q (Qes) | 0.45 |
Total Q (Qts) | 0.42 |
Compliance Equivalent Volume (Vas) | 52.5 liters / 1.85 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 147 cc |
Mechanical Compliance of Suspension (Cms) | 0.3 mm/N |
BL Product (BL) | 10.6 T-M |
Diaphragm Mass Inc. Airload (MMs) | 31 grams |
Efficiency Bandwidth Product (EBP) | 117 |
Maximum Linear Excursion (Xmax) | 4.2 mm |
Surface Area of Cone (Sd) | 350.1 cm2 |
Maximum Mechanical Limit (Xlim) | 8 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | 12.7-17 liters / 0.45-0.6 cu.ft. |
Vented | 17-39.6 liters / 0.6-1.4 cu.ft. |
Driver Volume Displaced | 0.026 cu.ft. / 0.74 liters |
Overall Diameter | 10.25", 260.4 mm |
Baffle Hole Diameter | 9.15", 232.4 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.28", 7.1mm |
Mounting Holes B.C.D. | 9.73", 247.1mm |
Depth | 4.9", 124.5 mm |
Net Weight | 4.6 lbs, 2.09 kg |
Shipping Weight | 5.7 lbs, 2.59 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Aluminum voice coil |
Coil Former | Polyimide former |
Magnet Composition | Neodymium magnet |
Core Details | Vented core |
Basket Materials | Die-cast aluminum basket/ heatsink |
Cone Composition | Paper Cone |
Cone Edge Composition | Cloth cone edge |
Dust Cap Composition | Solid composition paper dust cap |
