Brand: Eminence

Product Code: E-Eliminator2010-8ohm

Availability:Out of stock

$115.00 115.00

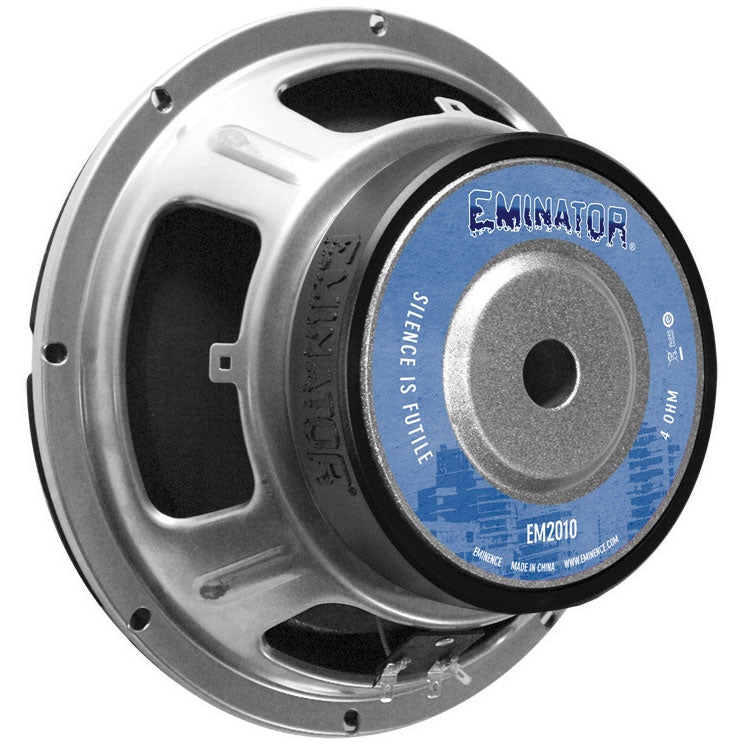

Eminence Eminator 2010

10" 200 Watt Sub Woofer

Eminence Eminator 2010 10" High Power Car Subwoofer 4 Ohm

The Eminence Eminator 2010 10" subwoofer is the driver of choice for car audio enthusiasts looking for the best boom for the buck. Eminence engineers used their experience to develop a 10" speaker that produces deep, deep bass—a lot of it! The Eminator 2010 features a foam half-roll surround, copper voice coil/polyimide former, high-energy ferrite magnet, vented pole piece, and stamped steel frame.

• Recommended enclosure volume: sealed: 0.55-1.5 cu.ft., vented: 1.1-2.2 cu. ft.

Born from a heritage of quality, value, and reliability, the Eminator® Series from Eminence is a sound barrier breakthrough for car audio enthusiasts everywhere. The Eminator® Series is skillfully designed with the same pro audio engineering that has made Eminence the most trusted brand in the speaker industry for nearly half a century. Eminence built its reputation in the car audio category over the last 25 years by building speakers for some of the biggest names in the business, including Pyramid, Crunch, Earthquake, Lanzar, and Hifonics.

With seven unique models, no other car audio speaker line provides more performance and reliability for the price. From high-power midranges to chest-thumping subwoofers, the Eminator® Series offers serious sound for serious tone-lovers everywhere

Product Specifications
  • Nominal Diameter                10"
  • Power Handling (RMS)         200 Watts
  • Power Handling (max)          800 Watts
  • Impedance                            4 ohms
  • Frequency Response            45 to 500 Hz
  • Sensitivity                             90.3 dB 1W/1m
  • Voice Coil Diameter              2"
  • Magnet Weight                     34 oz.
Thiele-Small Parameters
  • Resonant Frequency (Fs)      41 Hz
  • DC Resistance (Re)               3.47 ohms
  • Voice Coil Inductance (Le)    0.62 mH
  • Mechanical Q (Qms)             9.58
  • Electromagnetic Q (Qes)       0.62
  • Total Q (Qts)                          0.59
  • Compliance Equivalent Volume (Vas)                  2.17 ft.³
  • Mechanical Compliance of Suspension (Cms)    0.35 mm/N
  • BL Product (BL)                                                    7.87 Tm
  • Diaphragm Mass Inc. Airload (Mms)                    43.28g
  • Maximum Linear Excursion (Xmax)                      5 mm
  • Surface Area of Cone (Sd)                                    355.4 cm²
Materials of Construction
  • Cone Material                           Coated Paper
  • Surround Material                     Foam
  • Voice Coil Wire Material            Copper
  • Voice Coil Former                     Kapton® / Polyimide
  • Basket / Frame Material            Steel
  • Magnet Material                        Ferrite
Mounting Information
  • Overall Outside Diameter           10.11"
  • Baffle Cutout Diameter               9.13"
  • Depth                                          4.5"
  • # Mounting Holes                       8
Optimum Cabinet Size
(determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume2.32 ft.³
  • Sealed F356 Hz
  • Vented Volume4.69 ft.³
  • Vented F328 Hz
Eminence Eminator 2010 10" High Power Car Subwoofer 4 Ohm
  • Product Category                   Car Subwoofer Speakers
  • Unit of Measure                      EA
  • Weight                                     8 lbs.
