Brand: Eminence

Product Code: KAPPA-15C

Availability:Out of stock

$449.99 449.99

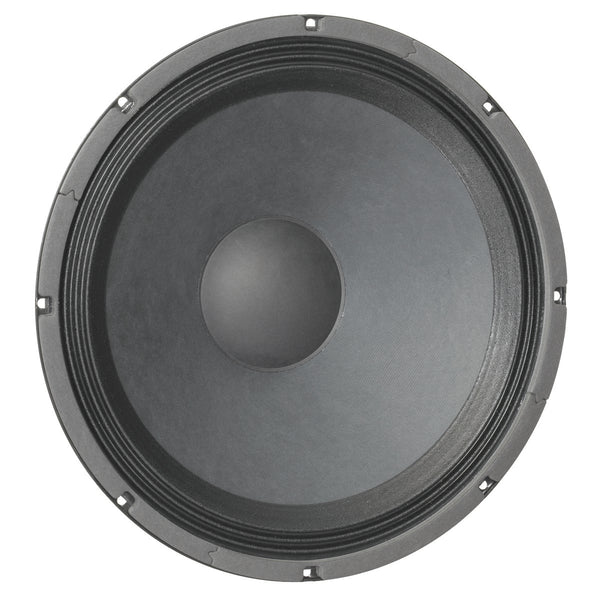

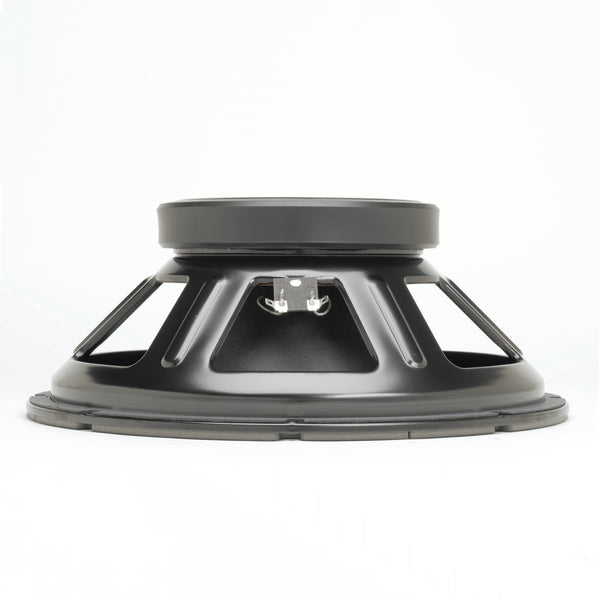

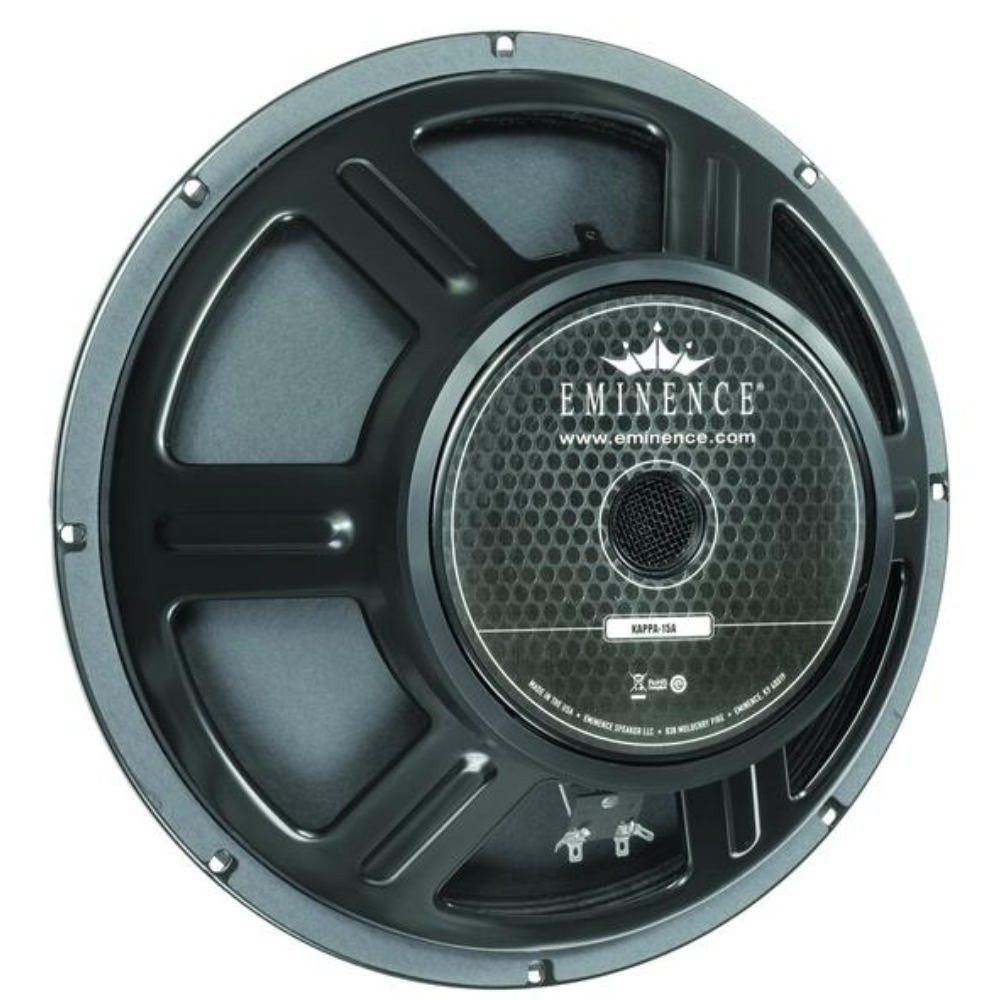

Eminence KAPPA 15C 15" Speaker 450 Watts

Recommended for professional audio in a vented mid-bass or bass enclosure. Also suitable for bass guitar and monitors.

Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 4 Ω
Power Rating*
Program Power 900 W
Watts 450 W
Resonance 31 Hz
Usable Frequency Range 63 Hz - 2.8 kHz
Sensitivity* 98.1 dB
Magnet Weight 80 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 3", 76 mm
Resonant Frequency (fs) 31 Hz
DC Resistance (Re) 3.68 Ω
Coil Inductance (Le) 0.88m H
Mechanical Q (Qms) 10.14
Electromagnetic Q (Qes) 0.25
Total Q (Qts) 0.25
Compliance Equivalent Volume (Vas) 329.9 liters / 11.65 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 206 cc
Mechanical Compliance of Suspension (Cms) 0.35 mm/N
BL Product (BL) 14.7 T-M
Diaphragm Mass Inc. Airload (MMs) 77 grams
Efficiency Bandwidth Product (EBP) 124
Maximum Linear Excursion (Xmax) 2.4 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 11.6 mm
Recommended Enclosure Volume
Sealed N/a
Vented 40-79 liters / 1.4-2.8 cu.ft.
Driver Volume Displaced 0.138 cu.ft. / 3.92 liters
Overall Diameter 15.16", 385.1 mm
Baffle Hole Diameter 13.87", 352.3 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.13", 155.7 mm
Net Weight 17.6 lbs, 7.98 kg
Shipping Weight 19.8 lbs, 8.98 kgs
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
