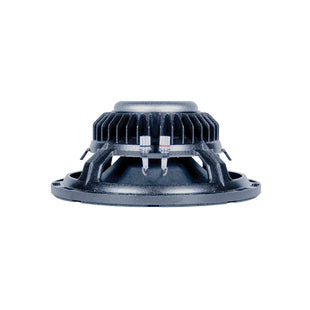

products/KL3010HO_8--3.jpg
products/KL3010HO_8--2.jpg

Brand: Eminence

Product Code: KAPPALITE3010HO

Availability:Out of stock

$499.00 499.00

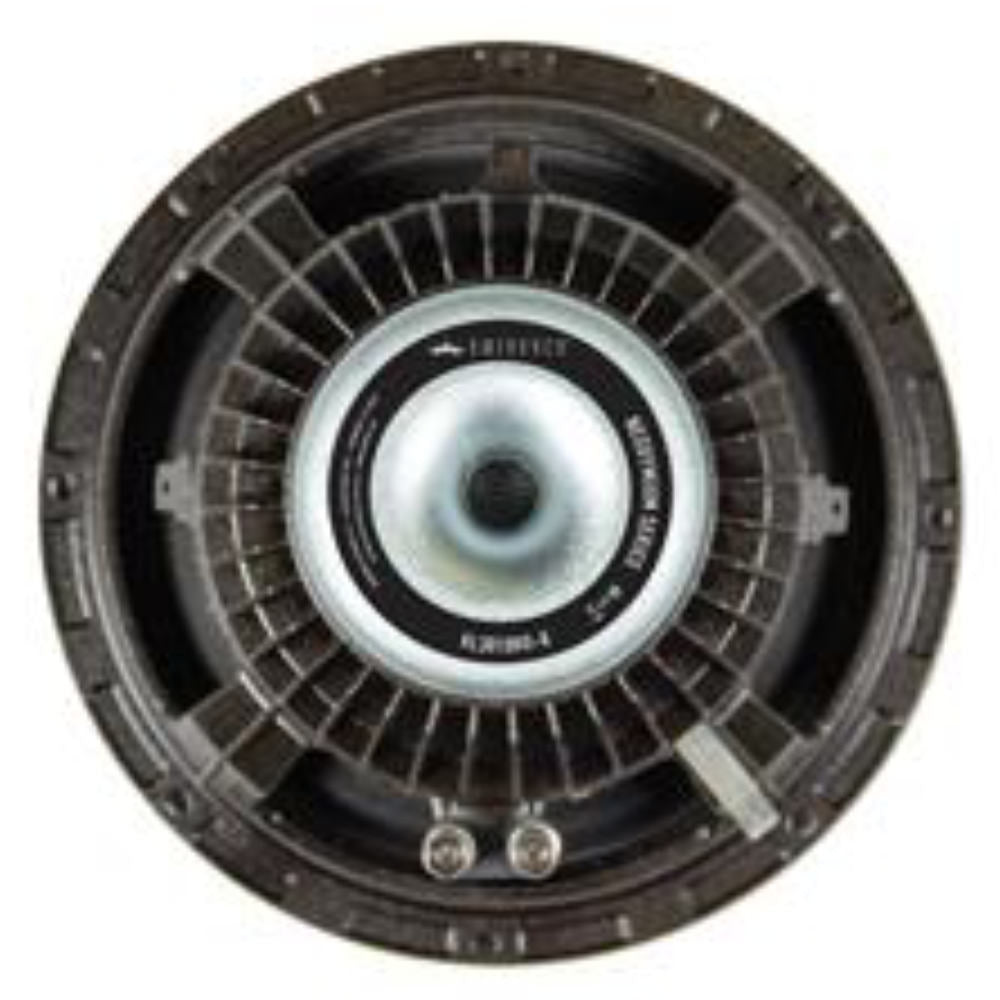

Eminence KAPPALITE3010HO 10in Speaker 400w 8 Ohm Neodymium

Lightweight high power high output midrange driver. For use in small sealed and vented enclosures.

SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 800 W
Watts 400 W
Resonance 62 Hz
Usable Frequency Range 400 Hz - 4 kHz
Sensitivity* 98.8 dB
Magnet Weight 11 oz.
Gap Height 0.365", 9.3 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 62 Hz
DC Resistance (Re) 5.57 Ω
Coil Inductance (Le) 0.43m H
Mechanical Q (Qms) 5.75
Electromagnetic Q (Qes) 0.28
Total Q (Qts) 0.27
Compliance Equivalent Volume (Vas) 37.21 liters / 1.31 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 162.2 cc
Mechanical Compliance of Suspension (Cms) 0.2 mm/N
BL Product (BL) 16.05 T-M
Diaphragm Mass Inc. Airload (MMs) 34 grams
Efficiency Bandwidth Product (EBP) 219
Maximum Linear Excursion (Xmax) 4.43 mm
Surface Area of Cone (Sd) 366.1 cm2
Maximum Mechanical Limit (Xlim) 7.5 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.037 cu.ft. / 1.04 liters
Overall Diameter 10.25", 260.4 mm
Baffle Hole Diameter 9.12", 231.7 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.29", 7.2mm
Mounting Holes B.C.D. 9.73", 247.1mm
Depth 4.56", 115.9 mm
Net Weight 6.6 lbs, 2.99 kg
Shipping Weight 8.2 lbs, 3.72 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Edge wound aluminum voice coil
Coil Former Fiberglass former
Magnet Composition Neodymium magnet
Core Details Vented Core

Basket Materials Die-cast aluminium basket
Cone Composition Treated paper cone
Cone Edge Composition Sealed cloth edge
Dust Cap Composition Treated paper dust cap
