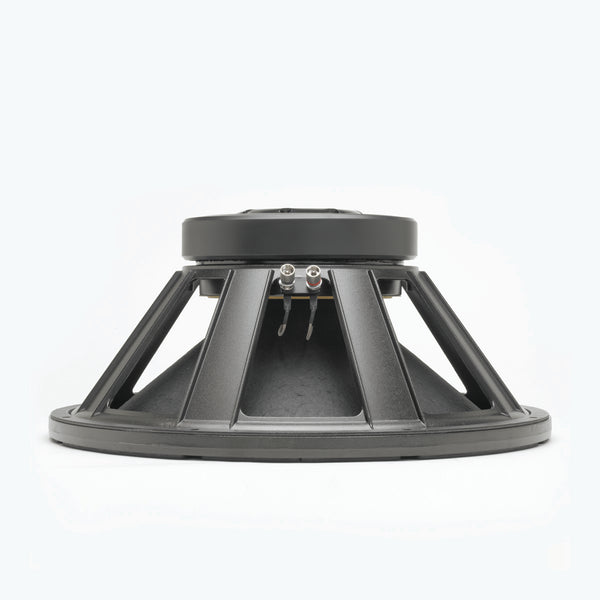

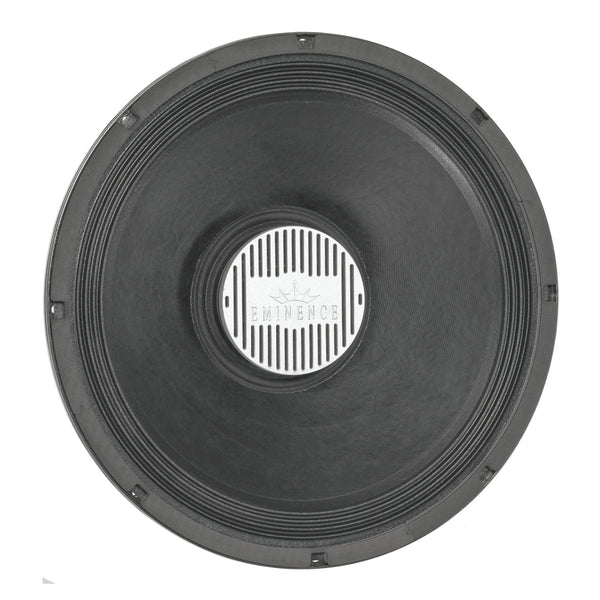

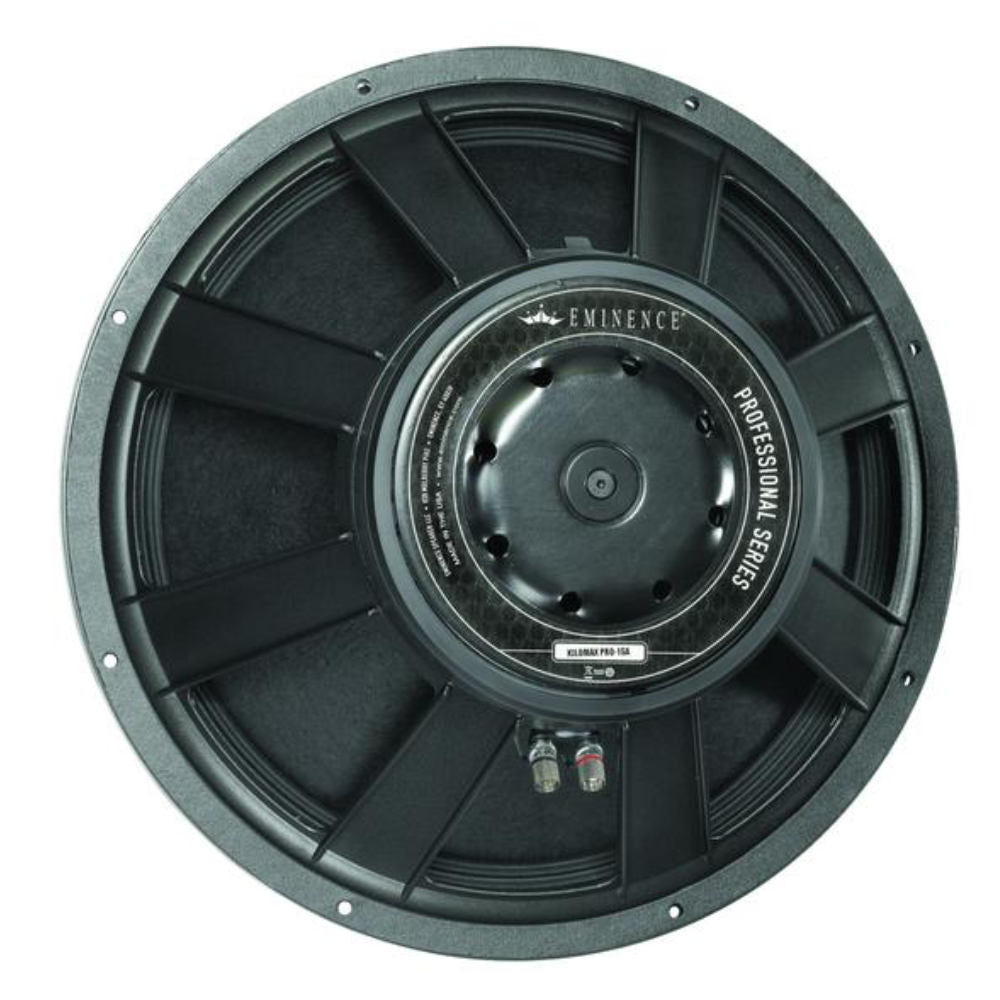

Eminence KILOMAX(R) PRO 15A 15" 1250 Watts

  • $575.00
Tax included.


Recommended for professional audio subwoofer and woofer applications in vented enclosures

SPECIFICATION
Nominal Basket Diameter 15", 381 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power 2500 W
Watts 1250 W
Resonance 41 Hz
Usable Frequency Range 44 Hz - 0.8 kHz
Sensitivity* 95.5 dB
Magnet Weight 109 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 4", 102 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 41 Hz
DC Resistance (Re) 4.97 Ω
Coil Inductance (Le) 1.78m H
Mechanical Q (Qms) 8.8
Electromagnetic Q (Qes) 0.4
Total Q (Qts) 0.39
Compliance Equivalent Volume (Vas) 154.5 liters / 5.46 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 677 cc
Mechanical Compliance of Suspension (Cms) 0.15 mm/N
BL Product (BL) 17.7 T-M
Diaphragm Mass Inc. Airload (MMs) 98 grams
Efficiency Bandwidth Product (EBP) 103
Maximum Linear Excursion (Xmax) 7.9 mm
Surface Area of Cone (Sd) 856.3 cm2
Maximum Mechanical Limit (Xlim) 13.5 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented 82-176 liters / 2.9-6.2 cu.ft.
Driver Volume Displaced 0.152 cu.ft. / 4.31 liters
Overall Diameter 15.21", 386.3 mm
Baffle Hole Diameter 14", 355.6 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 14.56", 369.8mm
Depth 6.42", 163.1 mm
Net Weight 24.7 lbs, 11.2 kg
Shipping Weight 27.1 lbs, 12.29 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Extended core with Core-Periphery Ventilation

Basket Materials Die-cast aluminium basket
Cone Composition Paper Cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Porous cloth top spider/ heatsink
