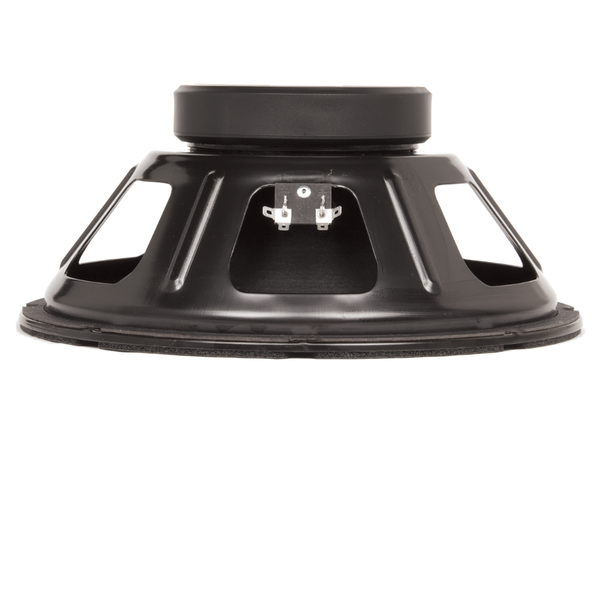

Eminence MAN O WAR 12" 120 Watts 8 Ohm Guitar Speaker
Eminence MAN O WAR 12" 120 Watts 8 Ohm Guitar Speaker
The Eminence Man O War guitar speaker is the work horse of tone. A proven and revered sound, very loud and responsive/articulate in every register. Chunky and solid sound with a little top end sparkle.
SPECIFICATION | |
Nominal Basket Diameter | 12", 305 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 120 W |
Resonance | 91 Hz |
Usable Frequency Range | 80 Hz - 5 kHz |
Sensitivity* | 101.6 dB |
Magnet Weight | 38 oz. |
Gap Height | 0.312", 7.9 mm |
Voice Coil Diameter | 1.75", 44 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 91 Hz |
DC Resistance (Re) | 6.2 Ω |
Coil Inductance (Le) | 0.43m H |
Mechanical Q (Qms) | 11.66 |
Electromagnetic Q (Qes) | 0.72 |
Total Q (Qts) | 0.68 |
Compliance Equivalent Volume (Vas) | 38 liters / 1.34 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 41.6 cc |
Mechanical Compliance of Suspension (Cms) | 0.1 mm/N |
BL Product (BL) | 12.3 T-M |
Diaphragm Mass Inc. Airload (MMs) | 31 grams |
Efficiency Bandwidth Product (EBP) | 127 |
Maximum Linear Excursion (Xmax) | 0.8 mm |
Surface Area of Cone (Sd) | 519.5 cm2 |
Maximum Mechanical Limit (Xlim) | N/A |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Acceptable |
Vented | Acceptable |
Driver Volume Displaced | 0.071 cu.ft. / 2 liters |
Overall Diameter | 12.03", 305.6 mm |
Baffle Hole Diameter | 11.07", 281.2 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.25", 6.4mm |
Mounting Holes B.C.D. | 11.59", 294.4mm |
Depth | 5.2", 132.1 mm |
Net Weight | 8.1 lbs, 3.67 kg |
Shipping Weight | 9.9 lbs, 4.49 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Non-vented core |
Basket Materials | Pressed steel basket |
Cone Composition | Paper cone |
Cone Edge Composition | Paper cone edge |
Dust Cap Composition | Zurette dust cap |
