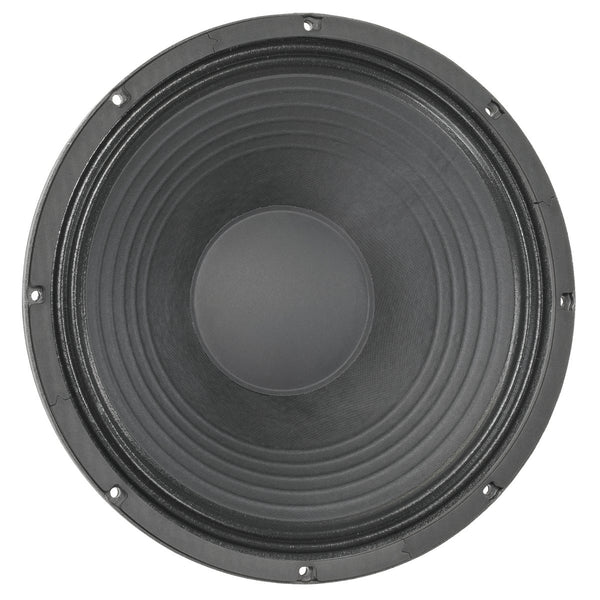

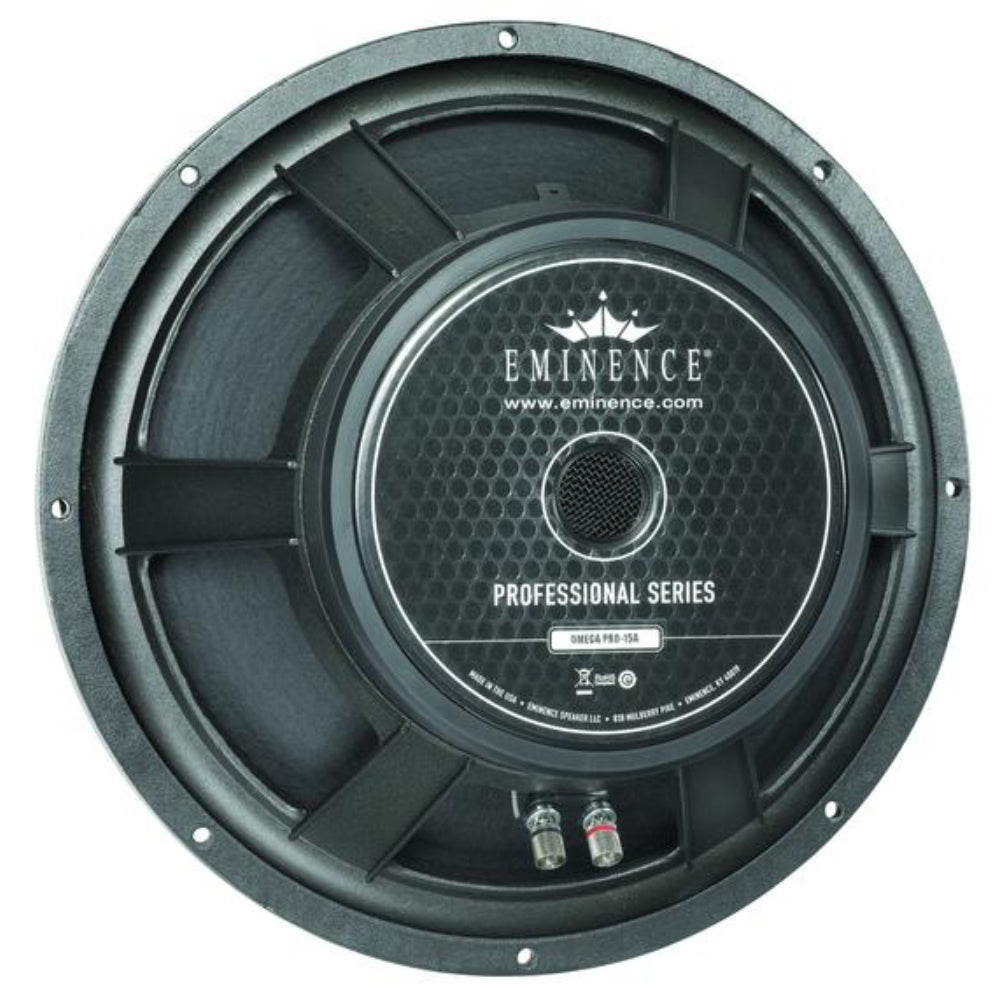

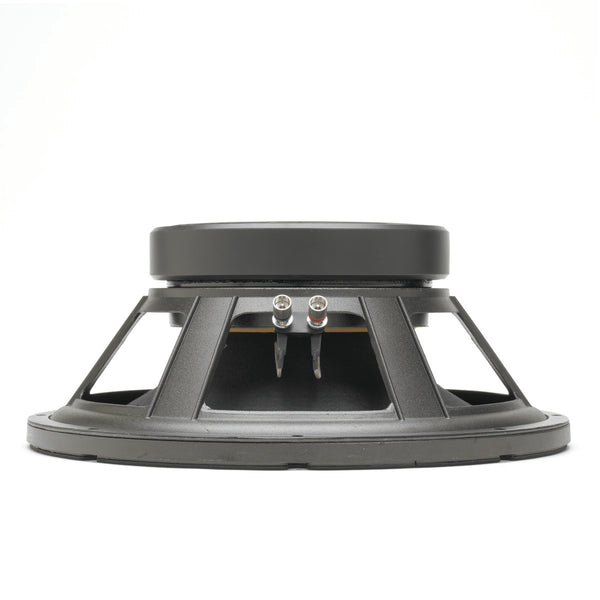

Eminence OMEGA PRO-15A 15" 800 Watts
High power driver for pro audio as a woofer in vented enclosures. Also suitable for horn loading and scoops.
SPECIFICATION | |
Nominal Basket Diameter | 15", 381 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | 1600 W |
Watts | 800 W |
Resonance | 33 Hz |
Usable Frequency Range | 51 Hz - 1.7 kHz |
Sensitivity* | 97.3 dB |
Magnet Weight | 109 oz. |
Gap Height | 0.375", 9.5 mm |
Voice Coil Diameter | 4", 102 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 33 Hz |
DC Resistance (Re) | 5.28 Ω |
Coil Inductance (Le) | 1.04m H |
Mechanical Q (Qms) | 5.69 |
Electromagnetic Q (Qes) | 0.33 |
Total Q (Qts) | 0.32 |
Compliance Equivalent Volume (Vas) | 258.5 liters / 9.13 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 411 cc |
Mechanical Compliance of Suspension (Cms) | 0.25 mm/N |
BL Product (BL) | 17.5 T-M |
Diaphragm Mass Inc. Airload (MMs) | 94 grams |
Efficiency Bandwidth Product (EBP) | 99 |
Maximum Linear Excursion (Xmax) | 4.8 mm |
Surface Area of Cone (Sd) | 856.3 cm2 |
Maximum Mechanical Limit (Xlim) | 12.2 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | N/a |
Vented | 57-108 liters / 2-3.8 cu.ft. |
Driver Volume Displaced | 0.152 cu.ft. / 4.31 liters |
Overall Diameter | 15.21", 386.3 mm |
Baffle Hole Diameter | 14", 355.6 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.28", 7.1mm |
Mounting Holes B.C.D. | 14.56", 369.8mm |
Depth | 6.35", 161.3 mm |
Net Weight | 22.7 lbs, 10.3 kg |
Shipping Weight | 25.2 lbs, 11.43 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Polyimide former |
Magnet Composition | Ferrite magnet |
Core Details | Vented and extended core |
Basket Materials | Die-cast aluminum basket |
Cone Composition | Paper cone |
Cone Edge Composition | Cloth cone edge |
Dust Cap Composition | Solid composition paper dust cap |
