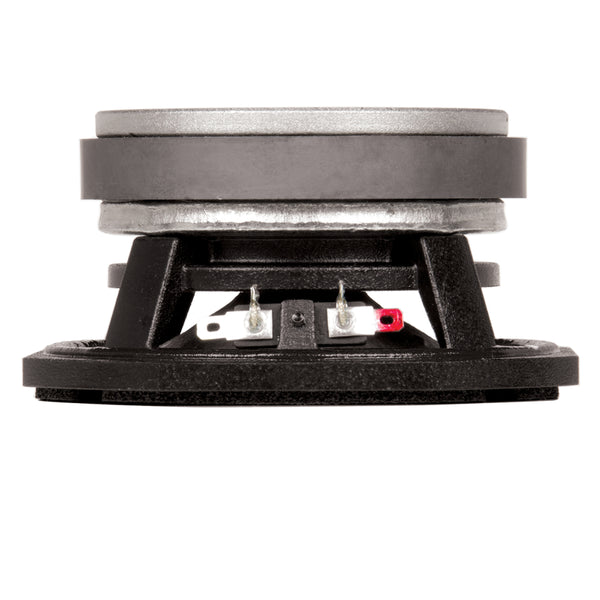

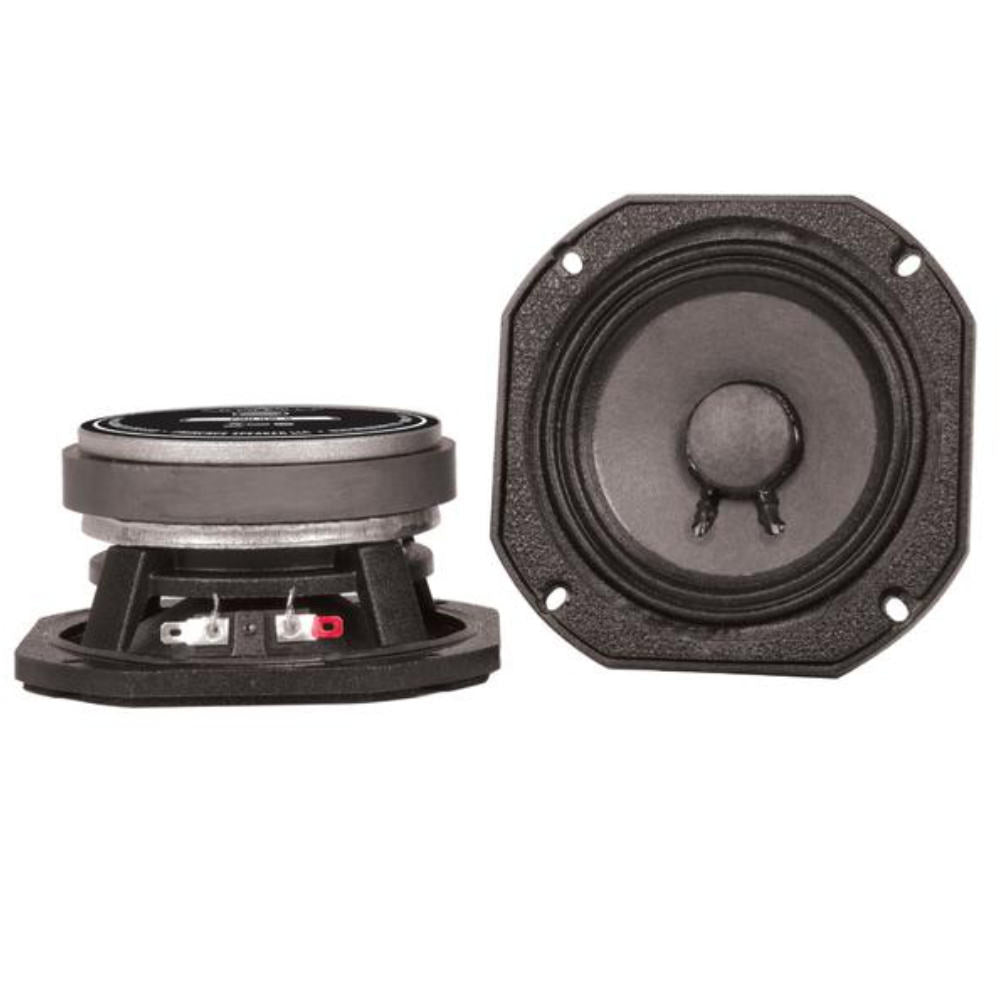

Eminence PRO 5W-8 5" 75 Watt
Small in size, large in performance. Featuring an advanced X5? pulp cone, high-temperature copper wire voice coil, and truncated cast frame chassis, the Pro 5W can handle your most demanding midbass, midrange, line array, or column array applications.
SPECIFICATION | |
Nominal Basket Diameter | 5", 127 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | 150 W |
Watts | 75 W |
Resonance | 95 Hz |
Usable Frequency Range | 120 Hz - 7.5 kHz |
Sensitivity* | 91.1 dB |
Magnet Weight | 15 oz. |
Gap Height | 0.315", 8 mm |
Voice Coil Diameter | 1", 25 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 95 Hz |
DC Resistance (Re) | 5.43 Ω |
Coil Inductance (Le) | 0.28m H |
Mechanical Q (Qms) | 3.35 |
Electromagnetic Q (Qes) | 0.35 |
Total Q (Qts) | 0.32 |
Compliance Equivalent Volume (Vas) | 4.31 liters / 0.15 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 19.7 cc |
Mechanical Compliance of Suspension (Cms) | 0.7 mm/N |
BL Product (BL) | 6.11 T-M |
Diaphragm Mass Inc. Airload (MMs) | 4 grams |
Efficiency Bandwidth Product (EBP) | 271 |
Maximum Linear Excursion (Xmax) | 2.95 mm |
Surface Area of Cone (Sd) | 66.6 cm2 |
Maximum Mechanical Limit (Xlim) | 6 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | 1.98-3.11 liters / 0.07-0.11 cu.ft. |
Vented | 2.55-4.81 liters / 0.09-0.17 cu.ft. |
Driver Volume Displaced | 0.013 cu.ft. / 0.36 liters |
Overall Diameter | 5.25", 133.4 mm |
Baffle Hole Diameter | 4.28", 108.7 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.13", 3.2mm |
Mounting Holes B.C.D. | 4.79", 121.7mm |
Depth | 2.5", 63.5 mm |
Net Weight | 2.9 lbs, 1.32 kg |
Shipping Weight | 3.3 lbs, 1.5 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Copper voice coil |
Coil Former | Kapton former |
Magnet Composition | Ferrite magnet |
Core Details | Vented and extended core |
Basket Materials | Die-cast aluminum basket |
Cone Composition | X5? Pulp cone |
Cone Edge Composition | Cloth cone edge |
Dust Cap Composition | Treated paper dust cap |
