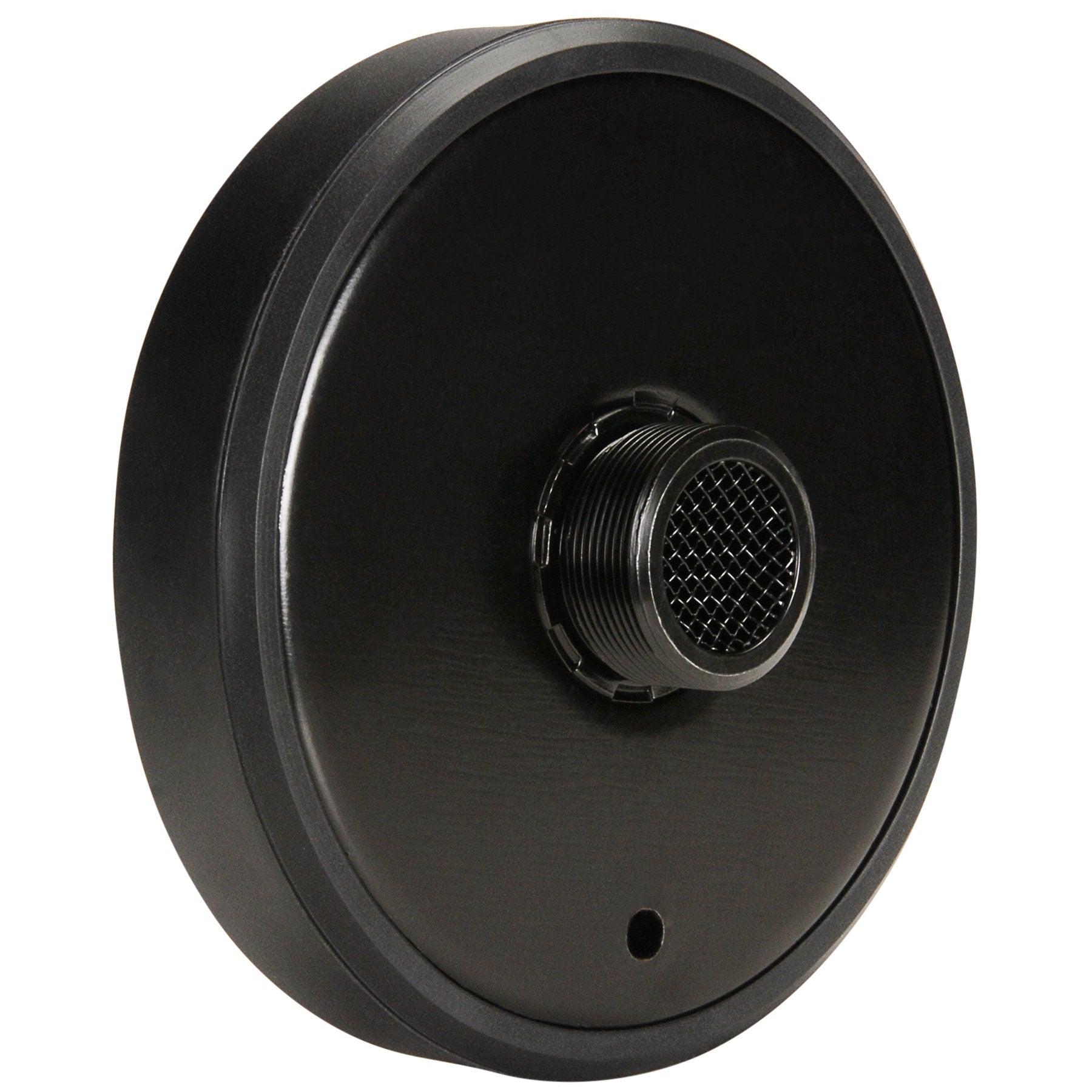

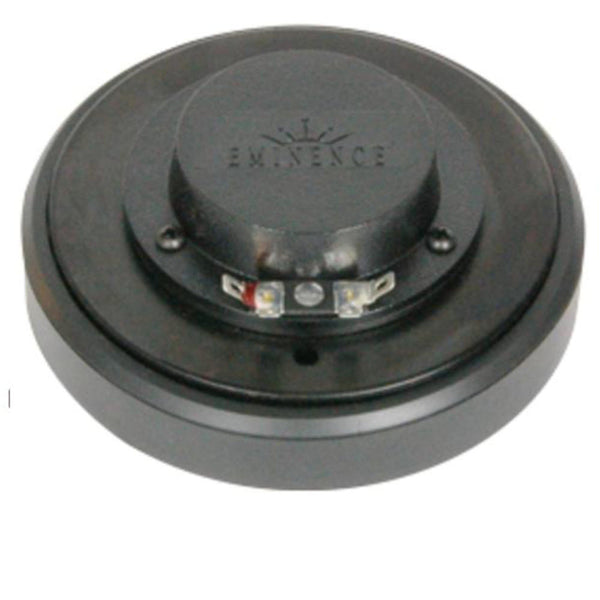

Eminence PSD2002-16 Driver 1in 80 Watts 16 Ohm Bolt On
Eminence PSD2002-16 Driver 1in 80 Watts 16 Ohm Bolt On
SPECIFICATION | |
Throat Size | 1", 25.4mm |
Nominal Impedance* | 16Ω |
Minimum Impedance | 14.8 ohm @ 3.3 kHz |
Power Rating** | 80 W (AES) |
Resonance | 0.58kHz |
Usable Frequency Range | 1200Hz-20kHz |
Recommended Crossover | 1.2 kHz / 18 dBkHz |
Sensitivity*** | 105.8 |
Magnet Material | Ferrite |
Magnet Weight | 34oz, 0.96kg |
Voice Coil Diameter | 2" / 50.8mm |
Voice Coil Former | Polyimide |
Diaphragm Material | Titanium |
DC Resistance (Re) | 11.9Ω |
MOUNTING INFORMATION | |
Overall Diameter | 5.25", 133.4mm |
Driver Volume Displaced | 0.01 cu.ft., 0.5 liters |
Depth | 2.2", 55.9mm |
Weight | 4.7 lbs, 2.1 kg |
Mounting Thread | N/A |
Mounting Holes Diameter | 2X 1/4-20 or 3x M6 |
Mounting Holes B.C.D. | 3 in. 76.2 mm or 2.25 in. 57 |
