Brand: Eminence

Product Code: WHEELHOUSE150

Availability:In stock

$365.00 365.00

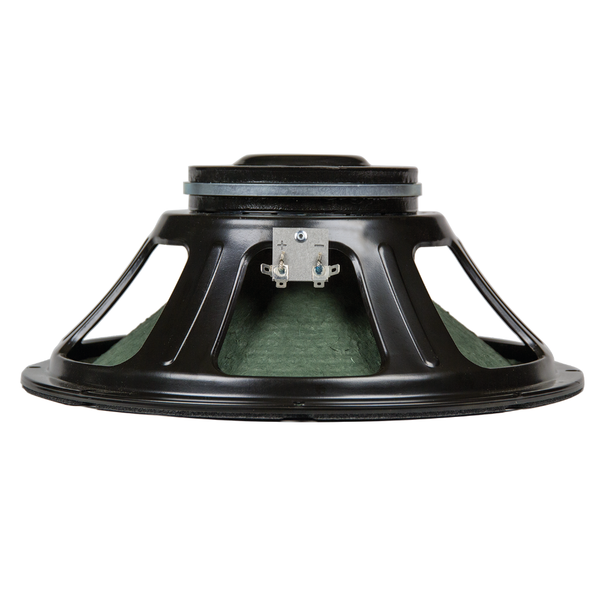

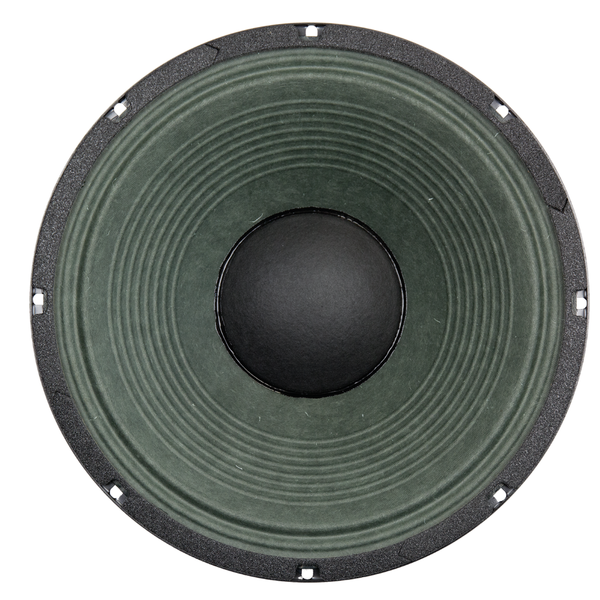

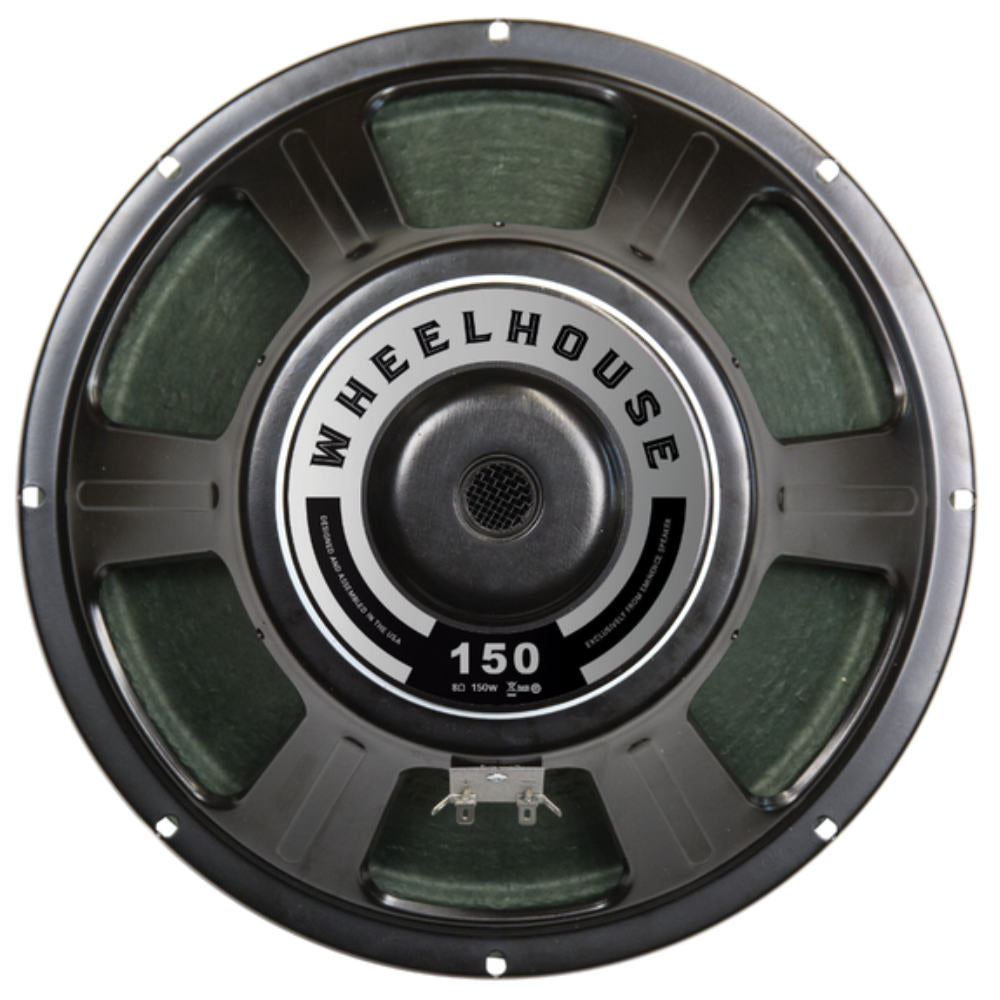

Eminence WHEEL HOUSE150 12" 150 Watts 8 Ohm Guitar Speaker

The warmth of hemp meets the power and responsiveness of neo in this versatile 12 inch speaker. Touch-sensitive and balanced, the Wheelhouse delivers warm, smooth tone throughout the entire spectrum, allowing you to utilize your amp controls to shape your sound. It handles pedals and amp EQ with ease. Go from country to fusion to blues and make it sound like it?s right in your wheelhouse.

SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 150 W
Resonance 82 Hz
Usable Frequency Range 80 Hz - 3.8 kHz
Sensitivity* 101.4 dB
Magnet Weight 11 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 82 Hz
DC Resistance (Re) 7.46 Ω
Coil Inductance (Le) 0.43m H
Mechanical Q (Qms) 14.28
Electromagnetic Q (Qes) 0.44
Total Q (Qts) 0.43
Compliance Equivalent Volume (Vas) 47.22 liters / 1.67 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 118.2 cc
Mechanical Compliance of Suspension (Cms) 0.12 mm/N
BL Product (BL) 16.31 T-M
Diaphragm Mass Inc. Airload (MMs) 30 grams
Efficiency Bandwidth Product (EBP) 187
Maximum Linear Excursion (Xmax) 2.22 mm
Surface Area of Cone (Sd) 532.4 cm2
Maximum Mechanical Limit (Xlim) 0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed N/a
Vented N/a
Driver Volume Displaced 0.064 cu.ft. / 1.81 liters
Overall Diameter 12.17", 309.1 mm
Baffle Hole Diameter 11.13", 282.7 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.24", 6.1mm
Mounting Holes B.C.D. 11.75", 298.5mm
Depth 5", 127 mm
Net Weight 6.6 lbs, 2.99 kg
Shipping Weight 8.7 lbs, 3.95 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Edge Wound Aluminum
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Full molded paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Paper dust cap
